Titanium Alloy (Ti) Gr 5 Sheets and Plates

HOME → Our Products → Sheet/Plate → Titanium Alloy Sheets/ Plates → Ti Gr 5 Sheets

Titanium Grade 5 Sheets & Plates Supplier

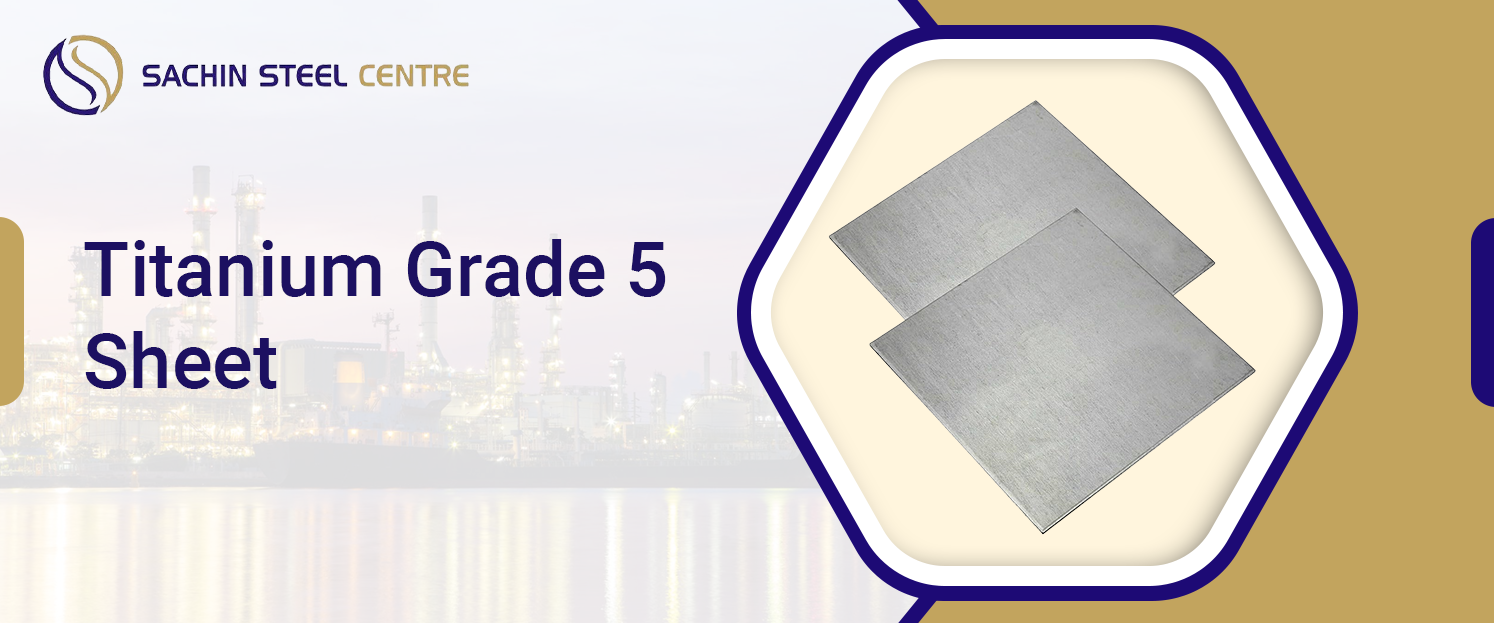

Titanium Grade 5 Sheets & Plates

Sachin Steel Center is a leading manufacturer and supplier of high-quality Titanium Grade 5 (Ti 6Al-4V) Sheets and Plates. We specialize in producing titanium alloy sheets and plates for industries requiring superior strength, corrosion resistance, and lightweight properties.  Sachin Steel Center manufactures and supplies premium Titanium Grade 5 sheets and Plates in compliance with ASTM B265, ASME SB265, UNS N56400, AMS, and BS standards. They are available in a variety of forms, including hot-rolled, cold-rolled, plain, cladding, flat shims, foils, and strips, with thicknesses ranging from 0.3 mm to 1200 mm and customizable widths, lengths, and sizes to meet client requirements. We offer a range of finishes such as hot-rolled, cold-rolled, 2B, 2D, BA, and SATIN (plastic-coated), ensuring the product meets specific project specifications.

At Sachin Steel Center, every Titanium Gr 5 sheet and plate undergoes stringent quality checks, including Positive Material Identification (PMI), mechanical and chemical analysis, hardness testing, intergranular corrosion (IGC) testing, and third-party inspections when requested. We provide Material Test Certificates (MTC), raw material certificates, and inspection reports to guarantee full compliance and traceability. Our team also offers custom-cut sheets and plates, ensuring precise dimensions and finishes, while our reliable logistics partners ensure safe and timely delivery worldwide.

inverted-commas

Ti 6al-4v Gr 5 Plate, Ti Grade 5 Shim Sheets in India, ASTM B265 Titanium Gr 5 Sheets Exporter, Titanium Gr 5 CR Sheets, Titanium Alloy Gr 5 Hot Rolled Plates, Titanium UNS R56400 Shim Sheets, Titanium Gr 5 2B Finish Plates.

Table Of Content

Titanium Gr 5 Sheets & Plates – Premium Ti 6Al-4V Alloy

Titanium Grade 5 (Ti 6Al-4V) Sheets and Plates are engineered for superior strength, lightweight performance, and exceptional corrosion resistance. As the most widely used titanium grade, Grade 5 sheets and plates are preferred across industrial, aerospace, marine, and high-performance applications.

Key Features:

  • High Strength: Titanium Gr 5 sheets exhibit excellent tensile and yield strength, making them ideal for structural and load-bearing applications.
  • Lightweight: Approximately 40% lighter than steel, providing significant weight reduction while maintaining superior strength.
  • Corrosion Resistance: Outstanding resistance against seawater, chemical exposure, and high-temperature environments.
  • Heat & Thermal Stability: Maintains strength and properties under elevated temperatures.
  • Excellent Workability: Offers superior ductility, weldability, and formability for fabrication processes such as cladding, rolling, and cutting.

Various Types of Titanium Gr 5 Sheet Metal

Hot Rolled Sheets

Titanium Gr 5 Hot Rolled Plate

Cold Rolled Sheets

Titanium Gr 5 Cold Rolled Plate

Shim Sheet

Titanium Gr 5 Shim Sheet

coil

Titanium Gr 5 Coil

Foil

Titanium Gr 5 Foil

Mesh Sheet

Titanium Gr 5 Mesh Sheet

Request Quote on Types of Titanium (TI) Gr5 Sheet/ Plate
inverted-commas

ASME SB 265 Titanium Gr 5 Sheet, ASTM b265 UNS R56400 Sheet Supplier, ASTM B265 Titanium Gr 5 HR Plates, Titanium Gr 5 Sheet Supplier, Titanium Alloy Gr.5 Plates, Ti Alloy Gr 5 Plates, Titanium Gr.5 Plate Manufacturers.

Specifications of Titanium Gr 5 Sheets and Plates

Standards ASTM B265 / ASME SB265
Dimensions ASTM, ASME, and API
Titanium Plate thickness ranges from .0125″ to 5.00″
Titanium Sheet thickness range from .008″ to .0125″
Sheets / plates Size 15NB to 150NB In
Value added services for Plates Waterjet cutting, Plasma cutting, Laser cutting, Bending and mechanical processing, edge preparation, welding, sawing and shearing
Hardness Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Types Sheets, Plates

Titanium Grade 5 Sheets & Plates Equivalent Grades

STANDARD WERKSTOFF NR. UNS
Titanium Gr 5 3.7165 R56400

Mechanical Properties of Titanium Grade 5 Alloy Sheets

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Titanium Gr. 5 4.43 g/cm3 1632 °C (2970 °F) Psi – 138000 , MPa – 950 Psi – 128000 , MPa – 880 14 %

Chemical Composition of Titanium Ti 6Al-4V Sheets

Grade Ti C Fe O Al V
Titanium Gr 5 90 min – 0.25 max 0.2 max 6 min 4 min

Titanium Grade 5 Plate Dimensions

Titanium Gr5 Plate Surface Finish ChartGauge (inch)Width (max inch)
2B – Cold rolled, pickled, heat treated, skin passed Plate10–2472*
2D – Cold rolled, pickled plate, heat treated12–2460
BA Mexinox only18–2848
Polished plate/ sheet (not brushed)11–2460
Temper hot rolled plate Mexinox only13–2948

ASTM B265 Grade 5 Titanium Plate Metric Dimensions

Ti Sheet Surface Finish Chart Gauge (inch) Width (max inch)
2B – Cold rolled, pickled, heat treated, skin passed Plate 10–24 72*
2D – Cold rolled, pickled plate, heat treated 12–24 60
BA Mexinox only 18–28 48
Polished plate/ sheet (not brushed) 11–24 60
Temper hot rolled plate Mexinox only 13–29 48

Titanium Grade 2 Sheet Size Chart

Grade 1 ASTM B 265 + F67
Thickness Weight/m2
0.5 mm 2.26 kg
0.6 mm 2.71 kg
0.7 mm 3.16 kg
0.8 mm 3.61 kg
1.0 mm 4.51 kg
1.5 mm 6.77 kg
2.0 mm 9.02 kg
3.0 mm 13.53 kg

Physical Properties of Grade 5 Titanium Sheet Metal

AlloyTi-6Al-4V
Elec.Resist.(µΩ.cm)170
Density(g.cm-3)4.42
Melt Range (°C±15)1649
Spec.Heat (J.g-1.K-1)0.56

Titanium Grade 5 Plate Thickness Guide (mm)

Plate Thickness
(mm) 		Plate Weight
(kg/m2)
2.0 15.7
1.6 12.6
3 23.6
2.5 19.6
3.2 25.1
5 39.3
4 31.4
6 47.1
10 78.5
8 62.8
12.5 98.1
20 157
15 118
22.5 177
30 236
25 196
32 251
40 314
35 275
45 353
55 432
50 393
60 471
70 550
65 510
75 589
250 1963
90 707
80 628
150 1178
100 785
120 942
110 864
130 1051
180 1413
160 1256
200 1570

Tolerance Levels of Titanium Grade 5 Sheets

Plate Width (w), in. [mm]
Specified Thickness (t), in. [mm] w > 144 [ 3658] 84 [2134] < w ≤ 120 [3048] w ≤ 84 [2134] 120 [3048] < w ≤ 144 [3658]
Tolerance Over Specified Thickness, *** in. [mm]
3/4 [19.05] ≤ t < 1 [25.04] 0.100 [2.54] 0.065 [1.65] 0.060 [1.52] 0.085 [2.16]
8 [203.2] ≤ t < 10 [254.0] 0.550 [14.0] 0.335 [8.50] 0.315 [8.00] 0.435 [11.0]
2 [ 50.80] ≤ t < 3 [76.20] 0.200 [5.08] 0.150[3.80] 0.125 [3.20] 0.175 [4.45]
3/16 [4.76] ≤ t < 3/8 [9.52] — 0.050 [1.27] 0.045 [1.14] 0.085 [2.16]
t < 3/16 [4.76] — 0.070 [1.78] 0.055 [1.35] —
1 [25.40] ≤ t < 2 [50.80] 0.115 [2.92] 0.075 [1.90] 0.070 [1.78] 0.095[2.41]
4 [101.6] ≤ t < 6 [152.4] 0.355 [9.02] 0.200 [5.08] 0.180 [4.75] 0.335 [8.50]
3 [76.20] ≤ t < 4 [101.6] 0.225 [5.72] 0.160 [4.06] 0.150 [3.81] 0.200 [5.08]
6 [152.4] ≤ t < 8 [203.2] 0.435 [11.0] 0.255 [6.48] 0.235 [6.00] 0.355 [9.02]

Applications of Titanium Grade 5 Sheet

  • Petrochemical Industry
  • Oil and Gas Industry
  • Chemical Industry
  • Power Plant Industry
  • Energy Industry
  • Pharmaceuticals Industry
  • Pulp & Paper Industry
  • Food Processing Industry
  • Aerospace Industry
  • Refining Industry
Application Industries

Frequently Asked Questions About Titanium (Ti) Gr 5 Plates/ Sheets

Titanium sheets are available in multiple grades, including commercially pure grades (Grade 1, 2, 3, 4) and alloyed grades like Grade 5 (Ti 6Al-4V), which is the most widely used due to its high strength, lightweight, and corrosion resistance.

Titanium sheets are manufactured in thicknesses ranging from 0.3 mm up to 1200 mm, with custom sizes available to meet specific industrial requirements.

Titanium plates, especially Grade 5, offer exceptional strength-to-weight ratio, high corrosion resistance, and excellent performance at elevated temperatures, making them perfect for jet engines and aerospace components.

Titanium Grade 5 sheets (Ti 6Al-4V) have a density of approximately 4.43 g/cm³, which is about 40% lighter than steel while maintaining superior strength.
