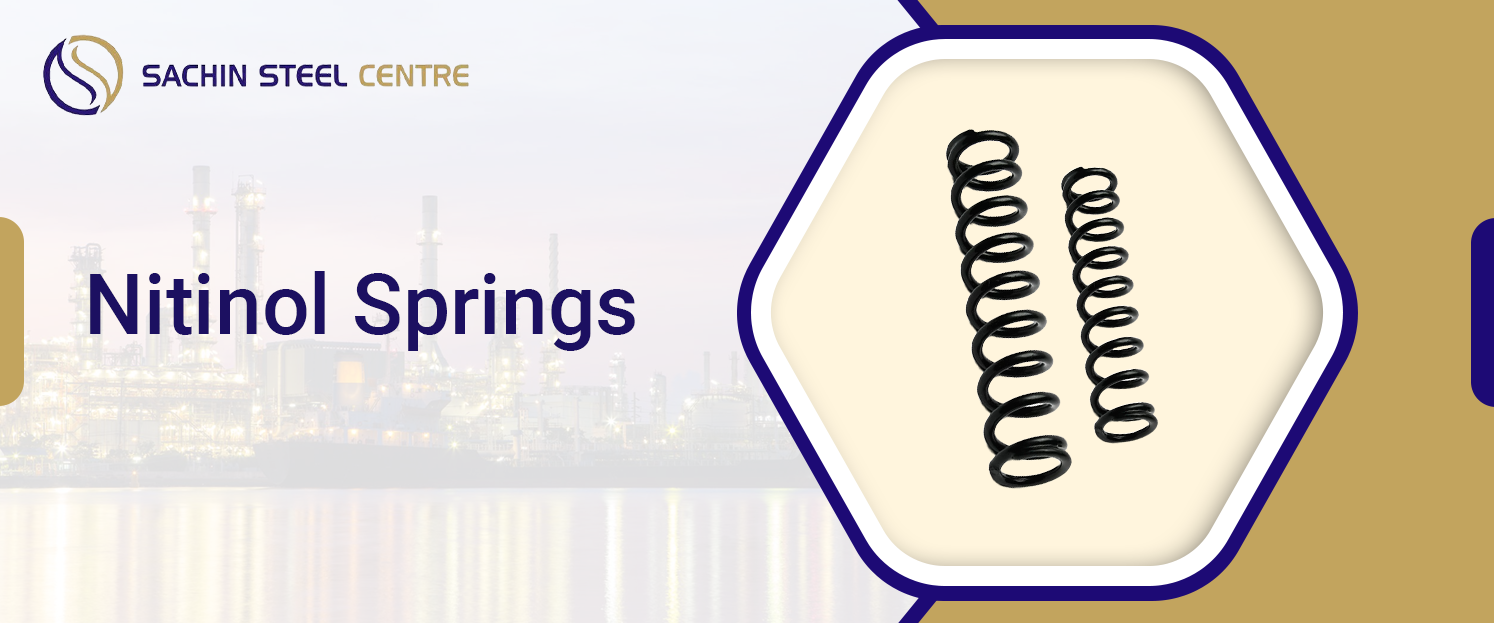

Nitinol Springs

HOME → Hot Products → Nitinol Products → Nitinol Springs

Nitinol Springs are made from nickel titanium NiTi, a shape memory alloy known for its ability to recover a predetermined shape and undergo substantial reversible deformation. Depending on the material condition and transformation temperature, a Nitinol Spring can be designed for heat activated movement, superelastic response, controlled recovery force, or repeated actuation. Compression, extension, torsion, helical and micro spring configurations can be produced for medical devices, robotics, aerospace systems, industrial actuators, temperature control mechanisms and other applications where compact movement and reliable recovery are important.

Sachin Steel Centre supplies Nitinol Springs in application specific configurations and can support requirements involving spring dimensions, wire diameter, coil geometry, transformation temperature, surface finish and documentation.

Table Of Content

Nitinol Springs Specifications
Dimensions of Nitinol Spring
Nitinol Spring Chemical Composition
Key Properties of Nitinol Springs
Shape Memory Nitinol Springs vs Superelastic Nitinol Springs
Equivalent Grades for Nitinol Springs
Applications of Nitinol Springs
Frequently Asked Questions

Technical Data

Nitinol Springs Specifications

Specification	Details
Material	Nickel Titanium Alloy
Density	Approximately 6.45 g/cm³
Wire Diameter	0.1 mm to 5 mm, other diameters on request
Free Length	Custom according to design; common stock lengths 150 mm, 300 mm and 500 mm
Spring Spacing	Application specific, confirmed at design stage
Surface	Rolled, pickled, polished
Standards	ASTM F2063, ASME SF2063
A_f Range	-20°C to 110°C

Wire diameter, free length and spring spacing shown above are typical capability ranges. Exact dimensions should be confirmed against an engineering drawing or specification for the intended application.

Dimensions of Nitinol Spring

Dimension	Meaning	Why It Matters
Wire Diameter	Diameter of the spring wire	Influences spring force and stiffness
Outside Diameter	Maximum external diameter	Determines available installation space
Inside Diameter	Internal opening of the spring	Important for clearance and mandrel fit
Mean Coil Diameter	Average diameter of the coil	Used when designing spring geometry
Pitch	Distance between adjacent coils	Influences spring movement and available stroke
Free Length	Length of the unloaded spring	Determines initial geometry
Number of Coils	Total number of turns	Influences spring response
Active Coils	Turns participating in spring action	Important for force and movement calculations
Mandrel Diameter	Diameter around which the spring is formed or operated	Controls internal clearance
Stroke	Required spring movement	Important for actuator design

Nitinol Spring Chemical Composition

Element	Requirement
Nickel Ni	Nominally 54.5 to 57.0 wt% under ASTM F2063
Titanium Ti	Balance
Trace Elements	Controlled according to the applicable material specification

Key Properties of Nitinol Springs

The main reason engineers choose Nitinol Springs is their ability to combine spring action with shape memory or superelastic behaviour.

Property	Importance
Shape memory effect	Allows temperature activated shape recovery
Superelasticity	Allows substantial reversible deformation under suitable conditions
Transformation temperature	Determines when phase transformation begins and finishes
Recovery force	Important when the spring is used as an actuator
Fatigue behaviour	Important for applications involving repeated cycling
Corrosion resistance	Useful in demanding environments
Compact actuation	Allows movement from a relatively small component
Thermal response	Useful for temperature controlled mechanisms

Shape Memory Nitinol Springs vs Superelastic Nitinol Springs

Feature	Shape Memory Nitinol Spring	Superelastic Nitinol Spring
Main activation	Temperature	Mechanical loading
Primary response	Shape recovery	Reversible deformation
Important parameter	Transformation temperature	Operating temperature and stress
Typical use	Thermal actuator	Flexible mechanism
Heat required	Usually yes for recovery	Not normally used as the primary activation method
Design focus	Trained geometry and A_f temperature	Recoverable deformation and cycling

Choosing between these two behaviours depends on whether the application requires temperature-activated movement or mechanically induced reversible movement.

Applications of Nitinol Springs

Nitinol springs are used where compact size, controlled force, shape recovery, and temperature-responsive movement are required.

Medical Devices: Used in surgical instruments, minimally invasive devices, implants, and positioning mechanisms.
Actuators: Nitinol actuator springs provide controlled movement when activated by heat or electrical current.
Temperature Control: Used in thermal valves, switches and temperature-responsive mechanisms.
Automotive: Applied in thermal actuators, control systems and compact mechanical assemblies.
Aerospace: Used in lightweight latches, deployable mechanisms and specialised control components.
Robotics: Nitinol shape memory springs provide controlled movement in compact robotic systems.

Frequently Asked Questions

What are Nitinol Springs?

Nitinol springs are spring components made from a nickel-titanium alloy. They can be designed to provide shape memory or superelastic behaviour, making them useful for compact actuators, medical devices, robotics, temperature control systems and specialised industrial mechanisms.

What is the difference between shape memory and superelastic Nitinol Springs?

Shape memory Nitinol springs are generally designed to recover a trained shape when heated through their transformation range. Superelastic Nitinol springs rely primarily on stress-induced transformation and reversible deformation during mechanical loading.

What types of Nitinol Springs are available?

Common types include compression springs, extension springs, torsion springs, helical springs, micro springs, one-way springs, two-way springs, and superelastic springs. The exact configuration depends on the required movement and application.

Can Nitinol spring dimensions be customised?

Yes. Nitinol Springs can be designed around application-specific requirements such as wire diameter, coil diameter, free length, pitch, number of turns, stroke and force. Custom dimensions should be confirmed against an engineering drawing or specification.

What standard is used for Nitinol material?

ASTM F2063 is an important specification for wrought nickel titanium shape memory alloy material. It should be used according to its stated scope and should not be treated as a complete specification for every finished spring design.

Related Nitinol Products

Request a Quote for Nitinol Springs

Looking for Nitinol springs for an actuator, medical mechanism, robotics system, temperature control device or specialised industrial application? Sachin Steel Centre can review the requirement and help identify the appropriate Nitinol Sheet or Nitinol Plate for the intended application.
