Titanium Gr 23 Round Bar Manufacturer and Supplier in India

Home >  Titanium Alloy >  Titanium Round Bar > Titanium Grade 23 Round Bar

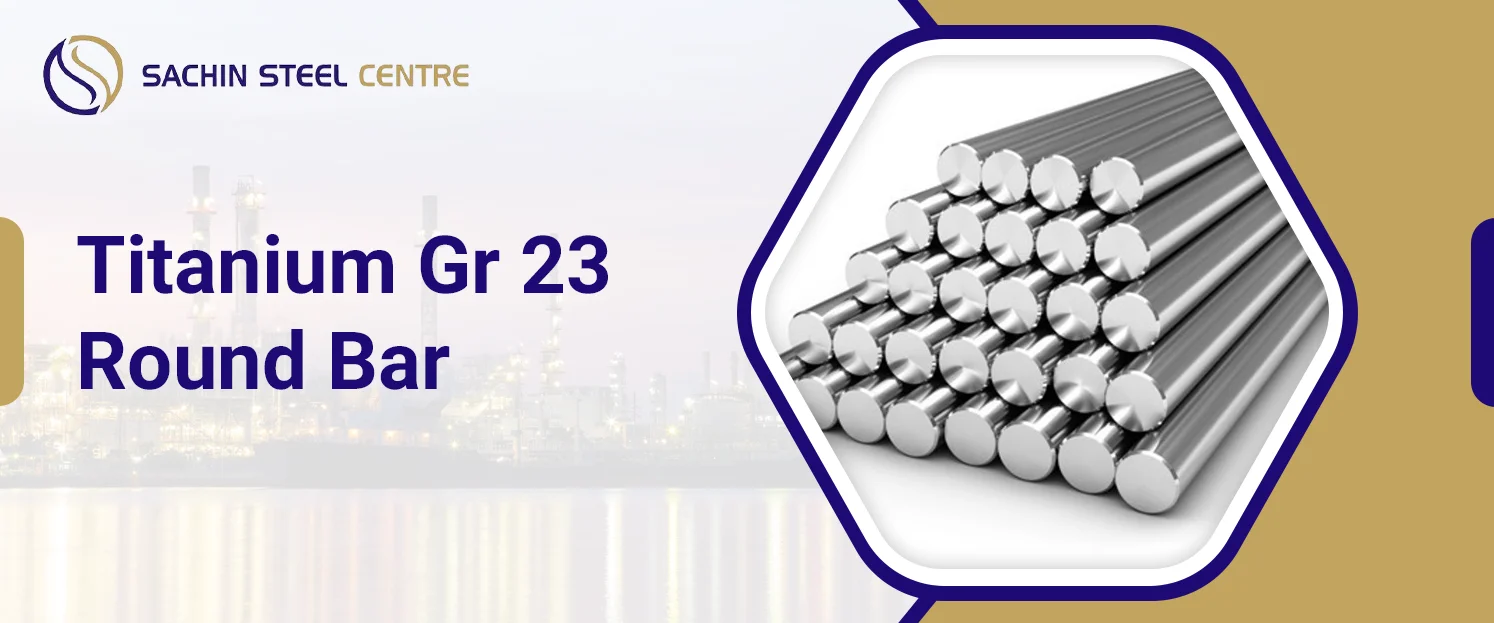

Titanium Gr 23 Round Bar

Titanium Gr. 23 Round Bar is an alpha-beta alloy of titanium, where the oxygen, nitrogen, carbon and iron content is reduced. The additional low interstitial contents offer enhanced ductility, fracture toughness, fatigue, and damage tolerance over standard Grade 5 titanium. Titanium Gr 23 Round Bars are generally used in applications that require high strength, light weight, corrosion resistance and biocompatibility. They can be used for such high-demand load-bearing parts as implants, aerospace components, cryogenic equipment, maritime applications, etc. The diameter, length and surface finish are available in a variety of sizes to suit application and machining requirements. Sachin Steel is leading manufacturer and supplier of Titanium Gr 23 Round Bars, India where they supply material with required specification and quality documentation.

Request a Quote
Table Of Content

Technical Data

Specifications of Titanium Gr 23 Round Bar

Specification Parameter

Technical Detail

Material Designation

Titanium Grade 23 / Ti-6Al-4V ELI (Extra Low Interstitial)

UNS Number

UNS R56401

Werkstoff Number

3.7165

Applicable Standards

ASTM B348, ASME SB-348, ASTM F136 (Surgical Implants), ISO 5832-3, AMS 4930.

Available Forms

Round Bar, Hex Bar, Square Bar, Flat Bar, Forged Rings

Diameter Range

3.0 mm to 350 mm (Custom diameters available on order)

Condition & Finish

Annealed

Certification

EN 10204 3.1 / 3.2 MTC, NABL Laboratory Test Reports, PMI Inspection

Chemical Compositions of Titanium Gr 23 Round Bar

Element

Minimum (% by mass)

Maximum (% by mass)

Aluminum (Al)

5.50%

6.50%

Vanadium (V)

3.50%

4.50%

Iron (Fe)

—

0.25%

Oxygen (O)

—

0.13%

Carbon (C)

—

0.08%

Nitrogen (N)

—

0.03%

Hydrogen (H)

—

0.0125%

Titanium (Ti)

Balance

Balance

Titanium Gr 23 Round Bar Mechanical Properties

Property

Value (Metric)

Value (Imperial)

Tensile Strength, Minimum

860 MPa

125,000 psi (125 ksi)

Yield Strength (0.2% Offset), Minimum

790 MPa

115,000 psi (115 ksi)

Elongation in 2 inches / 50mm, Minimum

10%

10%

Reduction of Area, Minimum

25%

25%

Hardness (Typical)

30 to 35 HRC

30 to 35 HRC

Physical Properties of Titanium Gr 23 Round Bar

Property

Metric Value

Imperial Value

Density

4.43 g/cm³

0.160 lb/in³

Melting Range

1,604 – 1,660 °C

2,920 – 3,020 °F

Modulus of Elasticity (Tensile)

114 GPa

16.5 × 10⁶ psi

Thermal Conductivity

6.7 W/m · K

46.5 BTU · in/hr · ft² · °F

Specific Heat Capacity

0.526 J/g · °C (526 J/kg · K)

0.126 BTU/lb · °F

Equivalent Grades of Titanium Gr 23 Round Bar

Standard / System

Designation / Grade

Unified Numbering System (UNS)

UNS R56401 (Note: UNS R56400 designates standard Grade 5)

Werkstoff Number (DIN EN)

3.7165

ASTM Standards

ASTM B348 Grade 23, ASTM F136

ASME Standard

ASME SB-348 Grade 23

ISO Standard

ISO 5832-3

EN Specification

TiAl6V4 ELI / X5TiAlV6-4

Applications and Industrial Uses of Titanium Gr 23 Round Bar

  • Surgical Implants
  • Orthopedic Components
  • Dental Implants
  • Aerospace Structural Components
  • Aircraft Engine Components
  • Cryogenic Equipment
  • Marine Equipment
  • Medical Devices
Application Industries

Frequently Asked Questions

What is Titanium Grade 23 Round Bar?

Titanium Grade 23 Round Bar is a Ti-6Al-4V ELI alloy bar known for high fracture toughness, ductility, fatigue resistance, and biocompatibility.

What is Titanium Grade 23 made of?

It is primarily made of titanium, aluminum, and vanadium, with controlled low levels of oxygen, nitrogen, carbon, and iron.

What does ELI mean in Titanium Grade 23?

ELI means Extra Low Interstitial, indicating reduced levels of elements such as oxygen, nitrogen, carbon, and iron.

What is the difference between Titanium Grade 5 and Grade 23?

Grade 23 has lower interstitial content than Grade 5, providing better ductility, fracture toughness, and fatigue performance.

Is Titanium Grade 23 suitable for medical implants?

Yes. Titanium Grade 23 is widely used for orthopedic, dental, and other surgical implants because of its biocompatibility and toughness.

Is Titanium Grade 23 biocompatible?

Yes. Grade 23 is highly biocompatible and is commonly used for medical implants and other applications involving contact with the human body.
