Titanium Grade 5 Wire (Ti-6Al-4V) Manufacturer, Supplier and Stockist

titanium grade 5 wire
Titanium Grade 5 wire is more commonly recognized as Ti-6Al-4V wire, which is the most commonly used prototype of titanium alloy wire across different sectors of engineering and manufacturing. The composition of this wire includes titanium, aluminum (about 6 percent), and vanadium (4 percent), in a distinctive combination of attributes, giving it a desirable combo of being lightweight, highly durable, and resistant to different forms of corrosion. The wire is manufactured as per ASTM B863 specifications and ASME SB863 recommended practices and is denoted by the UNS R56400, which means that each coil, spool, or length of wire can be traced back to one globally accepted standard. The wire performs remarkably well under bending stress, cold forming, and welded joints, and performs in marine environments, acidic conditions, and high-temperature area, while many other forms of metals lose strength or get corroded. Sachin Steel Centre is engaged in manufacturing and supplying titanium grade 5 wire from Mumbai which tests and certifies every batch before dispatch.
Table Of Content

Technical Data

Titanium Grade 5 Wire Specification

Field

Detail

Standard

ASTM B863, ASME SB863

UNS Number

R56400

Werkstoff Number

3.7164 / 3.7165

Diameter Range

0.10 mm to 5.00 mm, other sizes available on request

Length

Cut lengths from 0.125 inch to 72 inch, coil and spool supply also available

Supply Forms

Bright wire, MIG wire, TIG and filler wire, coil wire, electrode wire, welding wire

Surface Finish

Polished bright, smooth, bare, enamel coated, PTFE coated, ceramic coated, plated

Chemical Composition of Titanium Grade 5 Wire

Grade

Titanium

Aluminium

Vanadium

Iron (max)

Oxygen (max)

C, H, N

Titanium Grade 5

90% min

6% min

4% min

0.25%

0.20%

Controlled to ASTM B863 limits

Aluminium and Vanadium shown as minimum values per source data; typical mill certs report these as ranges (approx. 5.50–6.75% Al, 3.50–4.50% V).

Titanium Grade 5 Wire Mechanical Properties

Density

Melting Point

Tensile Strength

Yield Strength (0.2% Offset)

Elongation

4.43 g/cm³

1632°C (2970°F)

950 MPa / 138,000 psi

880 MPa / 128,000 psi

14%

Equivalent Grades of Titanium Grade 5 Wire

Standard

Werkstoff Number

UNS Number

Titanium Grade 5

3.7164 / 3.7165

R56400

Grade 5 Titanium Wire Diameter, Tolerance and Coil Weight

Diameter (mm)

Diameter (inch)

Supply Form

Tolerance

Typical Coil / Spool Weight

0.10

0.004

Fine wire, spool

±0.01 mm

1 to 2 kg

0.25

0.010

Spool, coil

±0.01 mm

2 to 5 kg

0.50

0.020

Coil, spool

±0.01 mm

5 to 10 kg

0.80

0.032

Coil, spool

±0.02 mm

10 to 15 kg

1.00

0.039

Coil, straight length

±0.02 mm

10 to 20 kg

1.50

0.059

Coil, straight length

±0.02 mm

15 to 25 kg

2.00

0.079

Coil, straight length

±0.02 mm

20 to 30 kg

3.00

0.118

Coil, straight length

±0.03 mm

25 to 40 kg

4.00

0.157

Straight length

±0.03 mm

30 to 50 kg

5.00

0.197

Straight length

±0.05 mm

40 to 60 kg

Sizes outside this range can be produced on request. Every coil of Titanium Grade 5 wire is weighed and tagged before dispatch so buyers know exactly what they are receiving.

Request a Quote

Types of Grade 5 Titanium Wire

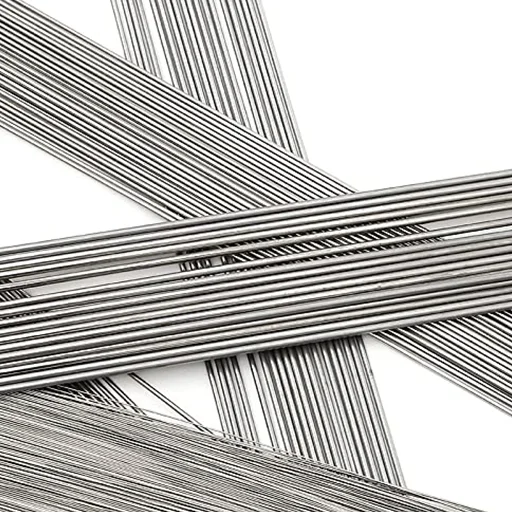

Titanium Grade 5 Filler Wire

Titanium Grade 5 Filler Wire

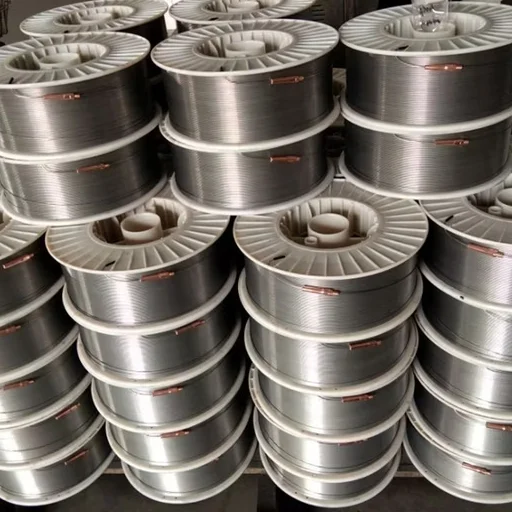

Titanium Grade 5 MIG Wire

Titanium Grade 5 MIG Wire

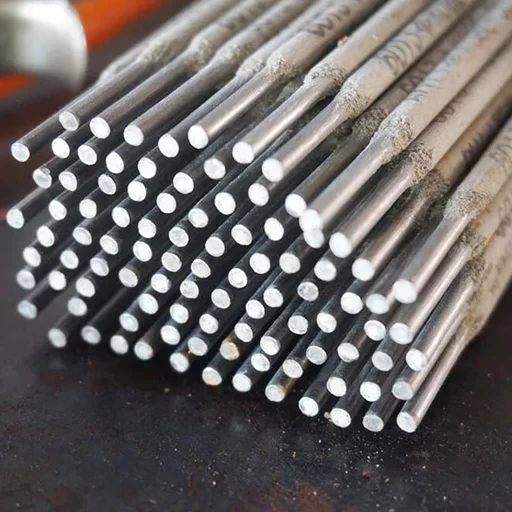

Titanium Grade 5 Welding Wire

Titanium Grade 5 Welding Wire

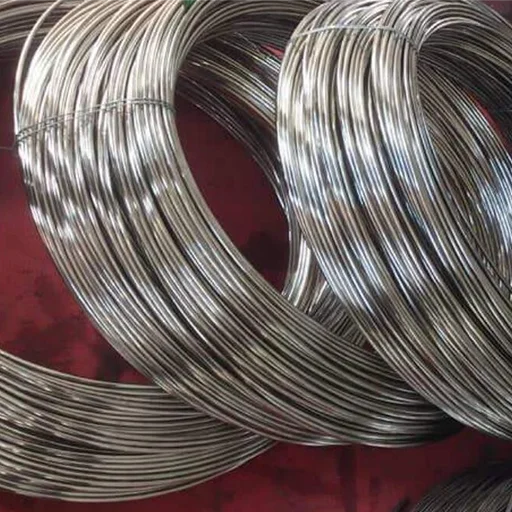

Titanium Grade 5 Bright Wire

Titanium Grade 5 Bright Wire

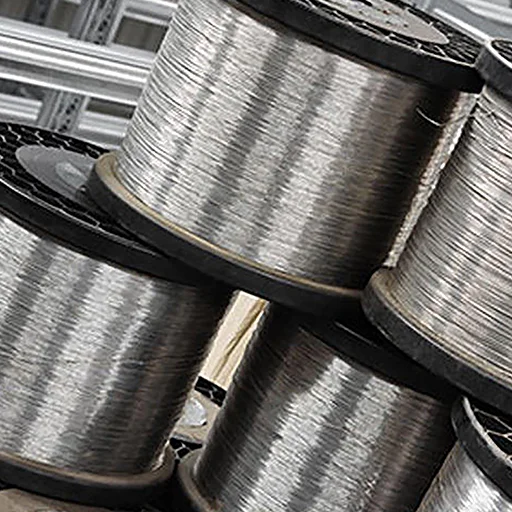

Titanium Grade 5 Coil Wire

Titanium Grade 5 Coil Wire

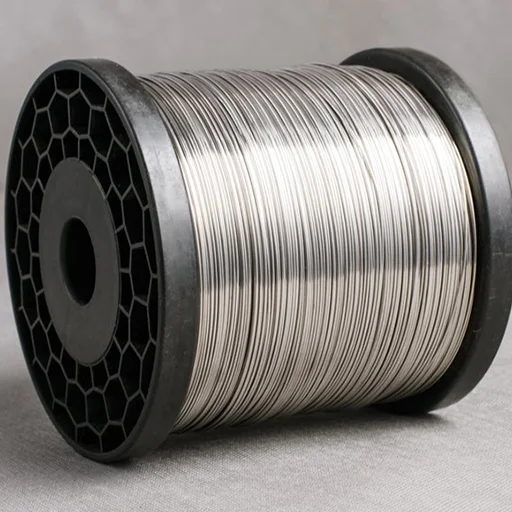

Titanium Grade 5 Electrode Wire

Applications of Titanium Grade 5 Wire by Industry

  • Aerospace. Titanium Grade 5 wire is drawn into fasteners, springs and structural wire forms used inside airframes and engine assemblies, where its strength to weight ratio directly reduces aircraft weight without compromising safety margins.
  • Marine. Marine engineers specify Titanium Grade 5 wire for propeller shafting components, rigging hardware and seawater exposed fittings because it does not pit or corrode the way stainless steel can after long term exposure to saltwater.
  • Medical. Medical device manufacturers use Titanium Grade 5 wire in orthodontic appliances, surgical instruments and implant components because of its biocompatibility and its ability to hold a precise shape under repeated use.
  • Chemical Processing. Chemical plants rely on Titanium Grade 5 wire in heat exchangers, agitators and reactor internals that come into contact with acids, chlorides and other aggressive process chemicals.
  • Oil and Gas. In offshore and onshore oil and gas operations, Titanium Grade 5 wire is used in subsea components, drilling equipment and instrumentation wiring where weight, strength and corrosion resistance all matter at once.
Application Industries

Frequently Asked Questions About Titanium Grade 5 Wire

Titanium Grade 5 wire is a Ti-6Al-4V titanium alloy containing approximately 6% aluminum and 4% vanadium. It provides high strength-to-weight ratio, corrosion resistance and reliable performance in demanding applications.

Yes, Titanium Grade 5 wire is commonly known as Ti-6Al-4V wire because it contains approximately 6% aluminum and 4% vanadium. Its UNS designation is R56400.

Titanium Grade 5 wire has UNS designation R56400 and Werkstoff numbers 3.7164 or 3.7165, depending on product form and reference standard. It is available according to ASTM B863 specifications.

Titanium Grade 2 is commercially pure titanium, while Grade 5 is a Ti-6Al-4V alloy. Grade 5 provides higher strength, whereas Grade 2 offers excellent ductility, formability and corrosion resistance.

Yes, Titanium Grade 5 wire is weldable and used as filler or welding wire. Appropriate TIG or MIG procedures, effective inert-gas shielding and proper titanium welding practices are essential for quality welds.

Titanium Grade 5 wire is available from approximately 0.10 mm to 5.00 mm diameter, with other sizes available on request. Forms include bright, MIG, TIG, filler, coil, electrode and welding wire.

Request a Quote for Titanium Grade 5 Wire

Sachin Steel Centre supplies certified Titanium Grade 5 wire in every diameter, tolerance and supply form listed on this page, with dispatch available across India and for export. Share your required specification to receive a detailed quote along with mill test certificate confirmation.
