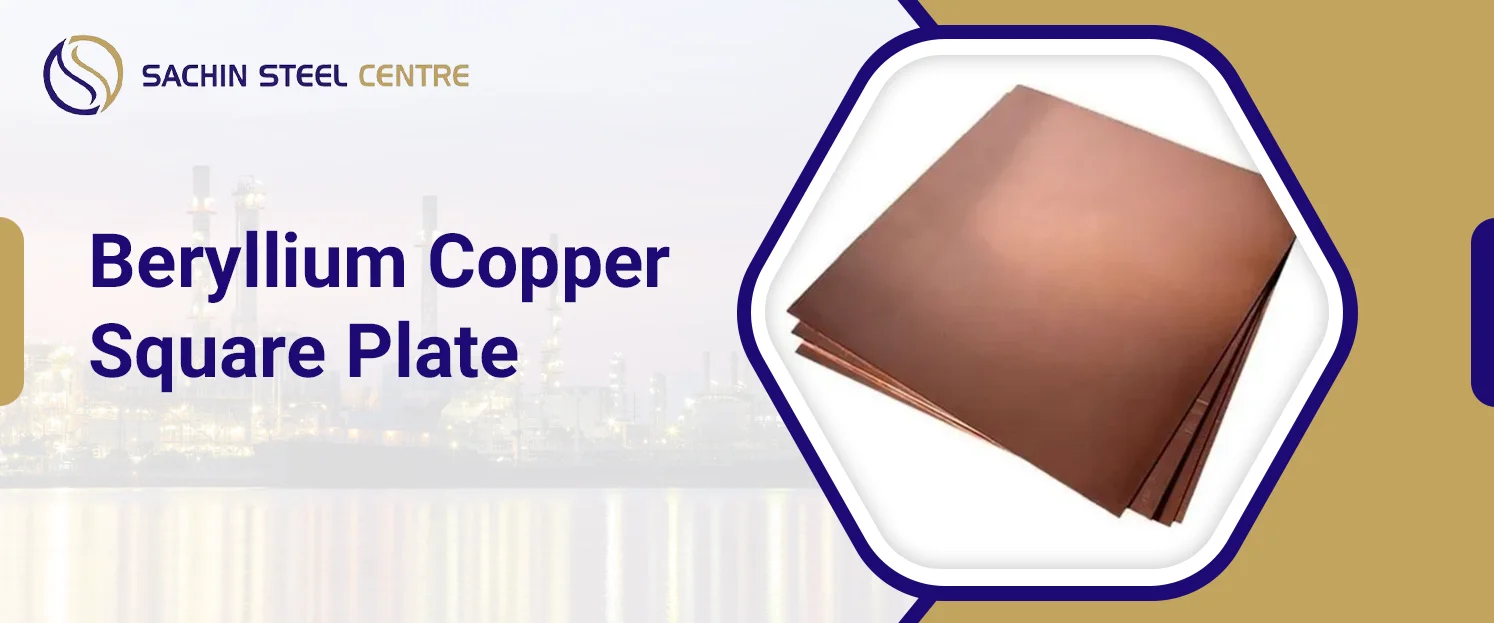

A square plate cuts cleaner from stock than most people expect, and that is half the reason buyers ask for it by shape instead of just ordering a rectangle and trimming it down. A beryllium copper square plate is flat, square-cut beryllium copper stock, almost always UNS C17200, known on the shop floor as Alloy 25 or CuBe2, supplied to ASTM B194. You order it by side length and thickness rather than length and width, and it comes either annealed, ready to machine or form, or age-hardened, ready to use as is. Sachin Steel Centre in Mumbai stocks beryllium copper square plate with a mill test certificate on every lot, and we cut to your drawing where a standard size does not fit.

Table Of Content

Beryllium Copper Square Plate Specification
Chemical Composition of Beryllium Copper (C17200)
Temper and Mechanical Properties of Square Plate (C17200)
Physical Properties of Beryllium Copper (C17200)
Beryllium Copper Square Plate Sizes and Weight per Piece
Applications of Beryllium Copper Square Plate
Frequently Asked Questions

Technical Data

Beryllium Copper Square Plate Specification

Field	Detail
Shape	Square (side length by side length)
Lead Grade	UNS C17200 (Alloy 25, CDA 172, CuBe2, DIN 2.1247)
Other Grades	UNS C17500 and C17510, where supplied
Standards	ASTM B194 / ASME SB194 for C17200; ASTM B534, general requirements ASTM B248
Tempers	TB00 (A), TD04 (H), TF00 (AT), TH04 (HT)
Side Length and Thickness	Quoted to your size; send the dimensions you need
Tolerance and Flatness	Stated on your enquiry; general tolerances follow ASTM B248
Certification	Mill test certificate per lot

Chemical Composition of Beryllium Copper (C17200)

Element	Content	Note
Beryllium (Be)	1.80 – 2.00%	Drives age hardening
Cobalt + Nickel (Co + Ni)	0.20% min	Grain control
Cobalt + Nickel + Iron	0.60% max	Combined limit
Copper (Cu)	Balance

Temper and Mechanical Properties of Square Plate (C17200)

Temper	Condition	Typical Tensile	Typical Hardness	When to Choose
TB00 (A)	Solution annealed, soft	About 410 – 540 MPa	About HRB 45 – 78	Machine soft, then age harden
TD04 (H)	Cold work, hard	Upper end of about 515 – 830 MPa	About HRB 68 – 102	Moderate strength without aging
TF00 (AT)	Age hardened from annealed	About 1140 – 1345 MPa	About HRC 36 – 41	Blank machined soft then hardened
TH04 (HT)	Age-hardened from cold worked	Up to about 1550 MPa	About HRC 39 – 45	Maximum strength and wear life

Physical Properties of Beryllium Copper (C17200)

Property	Metric	Imperial
Density (annealed)	About 8.25 g/cm³	About 0.298 lb/in³
Modulus of Elasticity	About 128 GPa	About 18,500 ksi
Melting Range	About 865 – 980°C	About 1590 – 1795°F
Electrical Conductivity (age hardened)	About 22% IACS minimum
Magnetic and Sparking	Non magnetic and non sparking

Beryllium Copper Square Plate Sizes and Weight per Piece

Send us the side length, thickness and tolerance you need and we will confirm what we can supply. The chart below shows the weight of one square blank in kilograms, calculated from side length × side length × thickness × 8.25 g/cm³. Use it to check a quote or plan handling.

Side (mm) / Thickness	5 mm	10 mm	15 mm	20 mm	25 mm	30 mm
50 × 50	0.10	0.21	0.31	0.41	0.52	0.62
100 × 100	0.41	0.83	1.24	1.65	2.06	2.48
150 × 150	0.93	1.86	2.78	3.71	4.64	5.57
200 × 200	1.65	3.30	4.95	6.60	8.25	9.90
250 × 250	2.58	5.16	7.73	10.31	12.89	15.47
300 × 300	3.71	7.43	11.14	14.85	18.56	22.28

Applications of Beryllium Copper Square Plate

Mould and Tooling Inserts: heat transfer blocks and wear parts for plastic moulding.
Resistance Welding Pads and Electrode Holders: contact plates where current and heat must move quickly.
Wear Plates, Bearing Plates, and Bushing Blanks: hardened plates that resist wear and galling.
Non-Sparking and Non-Magnetic Parts: for hazardous areas, plus aerospace and oil and gas components.

Frequently Asked Questions

What is a beryllium copper square plate?

Beryllium Copper Square Plate is a C17200, Alloy 25, or CuBe2 square blank supplied by side length and thickness for machining and age hardening.

What sizes and thicknesses of square plate are available?

Beryllium copper square plate size depends on stock and cutting capability. Specify the required side length and thickness for confirmation of available C17200 square plate dimensions.

Can a beryllium copper plate be cut to a square to my size?

Yes. Beryllium copper plate cut to size can be supplied by specifying side length, thickness, tolerance, and quantity. Cutting should use suitable dust extraction.

What is the difference between C17200, Alloy 25, and CuBe2 square plate?

C17200 square plate, Alloy 25 square plate, and CuBe2 square plate identify the same beryllium copper alloy under different designation systems.

Can a square plate be machined before it is hardened?

Yes. A BeCu square plate is commonly machined in the annealed condition before age hardening. The exact heat-treatment cycle should follow the applicable material datasheet.

Which ASTM standard covers beryllium copper square plate?

ASTM B194 covers C17200 plate, sheet, strip, and rolled bar. ASTM B248 provides general requirements and dimensional tolerances for copper beryllium products.

What is the difference between a square plate and a rectangular plate or sheet?

A square beryllium copper plate has equal sides, while a rectangular plate has unequal sides. 'Sheet' generally refers to thinner material, depending on the applicable specification.

Is a beryllium copper square plate safe to machine?

Machining a beryllium square plate can generate hazardous dust or fumes. Use suitable extraction, protective equipment, and workplace controls according to applicable safety requirements.

What is the price of beryllium copper square plate per kg?

Beryllium copper square plate price depends on alloy, temper, dimensions, quantity, cutting, and market conditions. Contact a manufacturer, supplier, stockist, or exporter for a quotation.
