Titanium Grade 5 Pipes & Tubes Manufacturer and Supplier in India

HOME → Titanium Alloy → Titanium Grade 5 Pipes & Tubes

Sachin Steel Product Banner_31 Aug_006

Titanium Grade 5 Pipes & Tubes (Ti-6Al-4V) are considered the best choice when there is a need for a combination of properties like strength, lightweight, and resistance to corrosion. They are the most frequently used material in different industries due to their properties. They are made with 90 percent titanium, 6 percent aluminium, and 4 percent vanadium. Which provides toughness and longevity in harsh conditions. As per the requirements of products, the manufacturing process of Titanium Grade 5 Pipes & Tubes can be done as per ASTM B338, ASTM B861, and ASME SB338 specifications. Apart from piping items, we also offer our range of Titanium Grade 5 Round Bar & Rod as well as Titanium Grade 5 Plates & Sheets for their respective fabrications. These products are manufactured and supplied by Sachin Steel Centre with consistent dimensions, material traceability and compliance in terms of specifications.

Table Of Content

Technical Data

Specifications of Titanium Grade 5 Pipes & Tubes

Specification Attribute

Details

Material Grade

Titanium Grade 5 (Ti-6Al-4V)

Standard Specifications

ASTM B337 (withdrawn/superseded), ASME SB337, ASTM B338, ASME SB338

Dimensional Standards

ASTM, ASME, API

Size Range

1/2"NBto24"NB

Schedules / Thickness

Sch 10s, Sch 40s, Sch 80s, Sch 160s, XXS

Product Types

Seamless, ERW, Welded, Fabricated

Forms

Round, Hydraulic, Coiled, Square, Rectangular

Length

Single Random, Double Random, Cut Length

End Preparation

Plain End (PE), Beveled End (BE), Threaded (THD)

Manufacturing Specialization

Large Diameter Sizes, Custom Fabrications

Titanium Grade 5 Chemical Composition

Element

Titanium (Ti)

Aluminum (Al)

Vanadium (V)

Iron (Fe)

Oxygen (O)

Carbon (C)

Nitrogen (N)

Hydrogen (H)

Composition (%)

90 min

5.5–6.75

3.5–4.5

0.40 max

0.20 max

0.10 max

0.05 max

0.015 max

Mechanical & Physical Properties Titanium Grade 5 Pipes & Tubes

Property

Density

Melting Point

Tensile Strength

Yield Strength (0.2% Offset)

Elongation

Value

4.43g/cm3

1632 ∘C (2970 ∘F)

950MPa (138,000psi)

880MPa (128,000psi)

14%

Titanium Grade 5 Pipes & Tubes Equivalent Grades

Grade

UNS Number

Werkstoff Number

Titanium Grade 5

UNS R56400

W.Nr. 3.7165

Weight Chart of Standard Nominal Pipe (Titanium Grade 5) Pipes & Tubes

NPS

OD (mm)

Sch 10S Wall (mm)

Sch 10S Weight (kg/m)

Sch 40S Wall (mm)

Sch 40S Weight (kg/m)

1/2"

21.30

2.11

0.57

2.77

0.72

3/4"

26.67

2.11

0.73

2.87

0.96

1"

33.40

2.77

1.20

3.38

1.43

1-1/2"

48.26

2.77

1.78

3.68

2.31

2"

60.33

2.77

2.25

3.91

3.11

3"

88.90

3.05

3.69

5.49

6.46

4"

114.30

3.05

4.79

6.02

9.19

Dimensions and Size Chart of Titanium Grade 5 Pipes & Tubes

Parameter

Seamless Pipe / Tube

Welded (ERW/EFW) Pipe / Tube

Heat Exchanger Tube

Outer Diameter (OD)

6.35 mm – 168.3 mm (¼" – 6")

12.7 mm – 219 mm (½" – 8")

9.53 mm – 38.1 mm (⅜" – 1½")

Wall Thickness

0.5 mm – 10 mm

0.8 mm – 12 mm

0.7 mm – 5 mm

Length

3,000 mm / 6,000 mm / Custom

3,000 mm / 6,000 mm / Custom

Custom per exchanger spec

End Finish

Plain End (PE), Bevelled (BV)

Plain End (PE), Bevelled (BV)

Plain / Expanded

Schedule

SCH 10 – SCH 160, XXS

SCH 5 – SCH 80

As per BWG gauge

Different Types of Titanium Grade 5 Pipes & Tubes

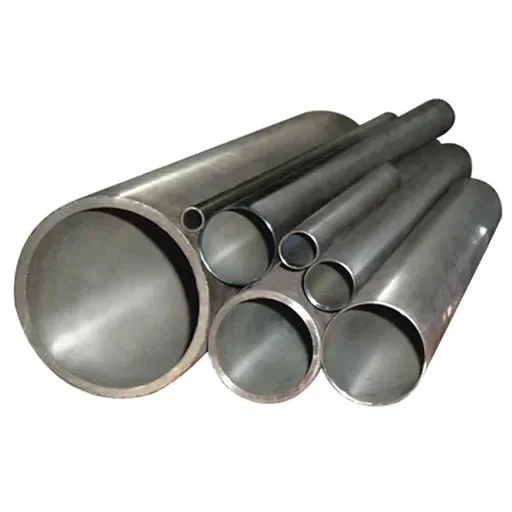

ERW Pipes

ERW Pipes

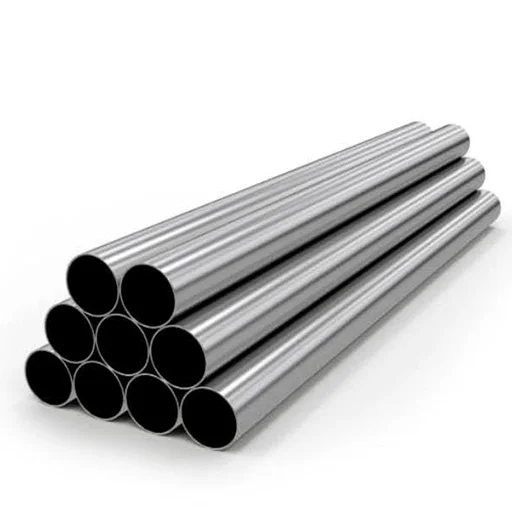

ERW Tubes

ERW Tubes

Rectangular Pipes & Tubes

Rectangular Pipes & Tubes

Round Pipes & Tubes

Round Pipes & Tubes

Seamless Pipes

Seamless Pipes

Seamless Tubes

Seamless Tubes

Square Pipes & Tubes

Square Pipes & Tubes

Threaded Pipes & Tubes

Threaded Pipes & Tubes

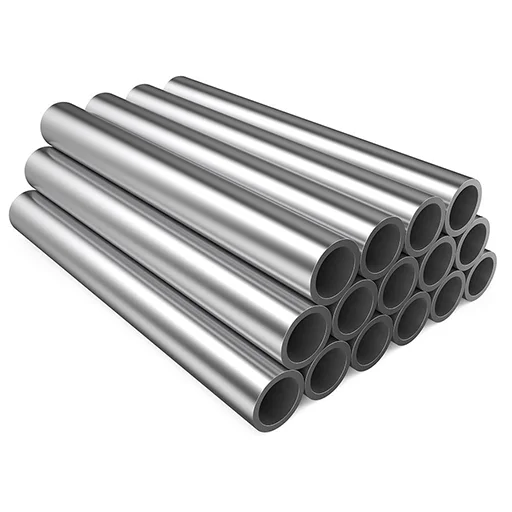

Welded Pipes

Welded Pipes

Welded Tubes

Welded Tubes

Applications and Industrial Uses of Titanium Grade 5 Pipes & Tubes

  • Aerospace Industry
  • Marine & Offshore Industry
  • Oil & Gas Industry
  • Chemical Processing Industry
  • Power Generation Industry
  • Desalination Plants
  • Medical & Biomedical Industry
  • Automotive Industry
Application Industries
Request a Quote

Frequently Asked Questions

Titanium Grade 5 is an alpha-beta titanium alloy containing about 6% aluminum and 4% vanadium. It offers high strength, low weight, and good corrosion resistance.

ASTM B338 is the specification for seamless and welded titanium and titanium alloy tubes for condensers and heat exchangers. Grade 5 products can be supplied to this standard when specified.

Yes. Titanium Grade 5 Pipes & Tubes have excellent corrosion resistance, especially in seawater, chloride-containing environments, and many industrial conditions.

Seamless pipes are made without a longitudinal weld, while welded pipes are formed from titanium material and joined by welding. The selection depends on size, pressure, design, and application requirements.

Yes. Titanium Grade 5 can be heat treated through solution treatment and aging to improve its strength and mechanical properties.

There is no single maximum temperature applicable to every design. Continuous service temperature depends on pressure, environment, fabrication, and applicable specifications; Grade 5 is generally used for elevated-temperature service up to around 400°C in suitable conditions.
