Titanium Grade 2 Fasteners Manufacturer and Supplier in India

Q: Are Titanium Grade 2 fasteners magnetic?

No. Titanium Grade 2 is non-magnetic, which makes it suitable for applications such as MRI and electronics-adjacent hardware where magnetic materials may be unsuitable.

Q: Can Titanium Grade 2 bolts be used in seawater?

Yes. Titanium Grade 2 provides excellent resistance to seawater corrosion and is used for selected marine fastener applications where resistance to chloride environments is required.

Q: What is the difference between Titanium Grade 2 and Grade 5 fasteners?

Grade 2 is commercially pure titanium with moderate strength of approximately 50 ksi yield strength, while Grade 5 (Ti-6Al-4V) is a titanium alloy with roughly 2.5 times the yield strength and is used where higher clamp loads are required.

HOME → Our Products → Fasteners → Titanium Fasteners →Titanium Grade 2 Fasteners

Titanium Grade 2 Fasteners are commercially pure grades of titanium used for high performance, lightweight, corrosion-resistant bolting in harsh industrial applications. They have a minimum tensile strength of 344 MPa and yield strength of 275 MPa and are manufactured to UNS R50400 and Werkstoff 3.7035. These fasteners have a density of about 4.51 g/cm³, which means that they have very high weight reduction. The naturally formed titanium oxide layer they have provides high chloride, marine and oxidizing resistance, and their ductility offers reliable installation and cold forming. Sachin Steel Centre is a reputed manufacturer and supplier of Titanium Grade 2 fasteners in India, providing Grade 2 fasteners in chemical processing, marine, desalination and other applications that are subject to corrosion.

Table Of Content

Technical Data
Specifications of Titanium Grade 2 Fasteners
Chemical Composition of Titanium Grade 2 Fasteners
Titanium Grade 2 Fasteners Mechanical Properties
Equivalent Grades of Titanium Grade 2 Fasteners
Applications and Industrial Uses of Titanium Grade 2 Fasteners
Types of Titanium Grade 2 Fasteners
Frequently Asked Questions

Technical Data

Specifications of Titanium Grade 2 Fasteners

Parameter	Technical Specification
Material Specification (Bolts, Screws, Studs)	ASTM F468 / ASME SF468 Grade 2
Material Specification (Nuts)	ASTM F467 / ASME SF467 Grade 2
Raw Material Bar Specification	ASTM B348 / ASME SB348 Grade 2
UNS Designation	UNS R50400
Werkstoff Number	3.7035 (DIN 17850 / EN 3.7035)
Size Range (Imperial)	3/16″ to 2″
Size Range (Metric)	M3 to M56
Thread Form Standards	UNC, UNF, UNEF, BSW, BSF, ISO Metric Coarse & Fine
Thread Fit Classes	Class 2A / 2B (Imperial), Class 6g / 6H (Metric)
Surface Finish & Coatings	As-Machined, Passivated, Type II Color Anodized, Micro-polished, PTFE / Xylan Dry-Film
Certification & Testing	EN 10204 3.1 / 3.2 MTC, NACE MR0175 / MR0103, PMI, Tensile/Hardness, TPI (SGS, TUV, BV)

Chemical Compositions of Titanium Grade 2 Fasteners

Element	Titanium (Ti)	Carbon (C)	Iron (Fe)	Hydrogen (H)	Nitrogen (N)	Oxygen (O)	Aluminum (Al)	Vanadium (V)
Weight %	99.2 min	0.1 max	0.3 max	0.015 max	0.03 max	0.25 max	—	—

Titanium Grade 2 Mechanical Properties

Property	Value
Grade	Titanium Gr. 2
Density	4.5 g/cm³
Melting Point	1665°C (3030°F)
Tensile Strength	344 MPa (49,900 psi)
Yield Strength (0.2% Offset)	275 MPa (39,900 psi)
Elongation	20%

Equivalent Standards of F467 Titanium Grade 2 Fasteners

Parameter	Specification / Grade Details
Standard	Titanium Gr. 2
Werkstoff Nr.	3.7035
UNS Number	R50400

Titanium Grade 2 Fasteners Weight Chart

Length (mm)	M 5	M 6	M 10	M 12	M 14	M 16	M 18	M 20	M 22
16	0.448	0.743	3.211	—	—	—	—	—	—
20	0.598	0.812	3.411	4.892	—	—	—	—	—
25	0.660	0.897	3.660	5.252	—	8.170	—	—	—
30	0.737	1.010	3.912	5.574	—	9.690	—	10.707	18.657
35	0.804	1.120	4.223	5.974	—	10.000	16.026	11.416	19.608
40	0.881	1.230	4.533	6.410	10.288	12.107	16.667	13.624	20.747
45	0.958	1.340	4.840	6.859	10.504	12.821	17.241	14.840	21.739
50	1.030	1.450	5.155	7.299	11.261	13.624	17.857	22.727	28.409
55	—	1.560	5.464	7.740	11.628	14.409	18.868	23.810	30.120
60	—	1.670	5.774	8.183	12.255	15.244	20.000	25.126	32.051
65	—	1.781	6.083	8.621	12.626	16.026	21.008	26.455	34.014
70	—	1.890	6.394	9.058	12.987	16.835	22.124	27.778	35.461
75	—	2.000	6.702	9.506	13.228	17.606	23.256	29.070	39.063
80	—	2.111	7.013	10.000	13.889	18.248	24.510	30.303	40.000
90	—	—	7.634	10.917	14.925	26.042	—	33.113	41.667
100	—	—	8.251	11.820	16.340	27.778	—	35.714	46.296
110	—	—	8.881	12.723	17.730	31.250	—	38.168	47.170
120	—	—	9.506	13.624	18.797	32.895	—	40.984	50.000
130	—	—	10.101	14.535	20.000	34.722	—	43.478	52.632
140	—	—	10.707	15.432	20.833	35.461	—	46.296	55.556
150	—	—	11.312	16.340	22.222	37.594	—	48.544	58.824
160	—	—	11.905	17.241	24.272	40.984	—	50.505	61.728
170	—	—	12.500	18.116	—	—	—	53.191	64.935
180	—	—	13.123	19.011	26.882	—	—	55.556	67.568
190	—	—	13.736	19.920	—	—	—	58.140	70.423
200	—	—	14.327	20.833	29.586	49.020	—	60.976	73.529
220	—	—	15.528	22.624	—	—	—	65.789	79.365
240	—	—	16.722	24.510	—	—	—	71.429	84.746
250	—	—	17.301	25.381	—	—	—	74.627	87.719
260	—	—	17.921	26.316	—	—	—	76.923	90.909
280	—	—	19.157	28.090	—	—	—	81.967	98.039
300	—	—	20.325	29.940	—	—	—	87.719	104.167

Weights shown in grams per piece.

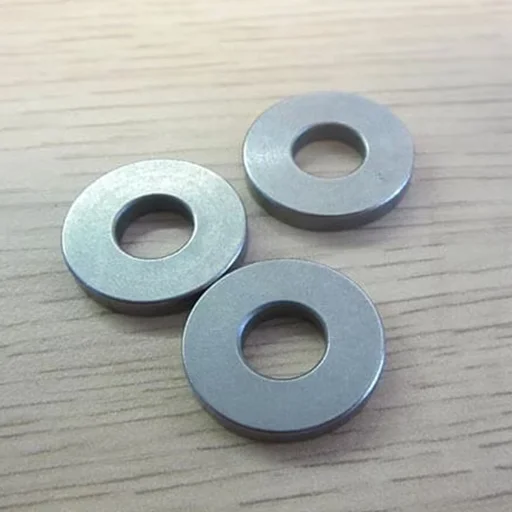

Titanium Grade 2 Washer Dimensions Chart

Size / Fastener	SAE Inside Dia (A)	SAE Outside Dia (B)	SAE Thickness (C)	USS Inside Dia (A)	USS Outside Dia (B)	USS Thickness (C)
#2	3/32″	1/4″	0.020″	—	—	—
#4	1/8″	5/16″	0.032″	—	—	—
#6	5/32″	3/8″	0.049″	—	—	—
#8	3/16″	7/16″	0.049″	—	—	—
#10	7/32″	1/2″	0.049″	—	—	—
#12	1/4″	9/16″	0.065″	—	—	—
1/4″	9/32″	5/8″	0.065″	5/16″	0.734″	0.065″
5/16″	11/32″	11/16″	0.065″	3/8″	7/8″	0.083″
3/8″	13/32″	13/16″	0.065″	7/16″	1″	0.083″
7/16″	15/32″	15/16″	0.065″	1/2″	1-1/4″	0.083″
1/2″	17/32″	1-1/16″	0.095″	9/16″	1-3/8″	0.109″
9/16″	19/32″	1-5/32″	0.095″	5/8″	1-15/32″	0.109″
5/8″	21/32″	1-5/16″	0.095″	11/16″	1-3/4″	0.134″
3/4″	13/16″	1-15/32″	0.134″	13/16″	2″	0.148″
1″	1-1/16″	2″	0.134″	1-1/16″	2-1/2″	0.165″
1-1/4″	—	—	—	1-3/8″	3″	0.165″
1-3/8″	—	—	—	1-1/2″	3-1/4″	0.180″
1-1/2″	—	—	—	1-5/8″	3-1/2″	0.180″
1-3/4″	—	—	—	1-7/8″	4″	0.180″
2″	—	—	—	2-1/8″	4-1/2″	0.213″

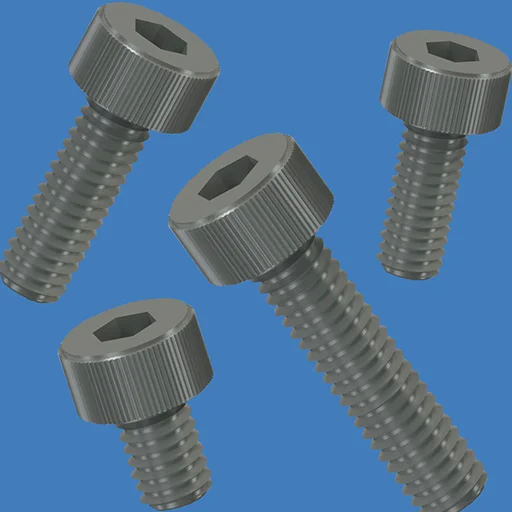

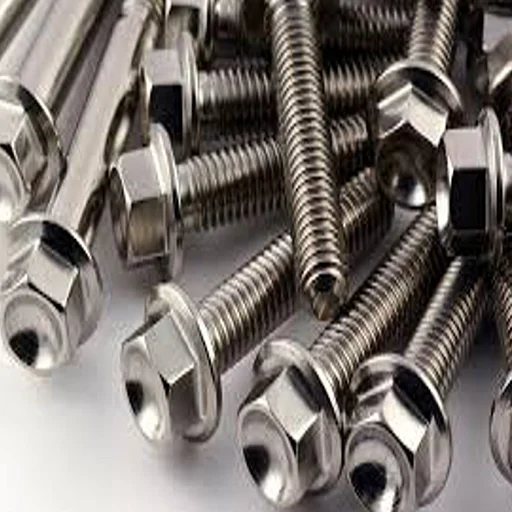

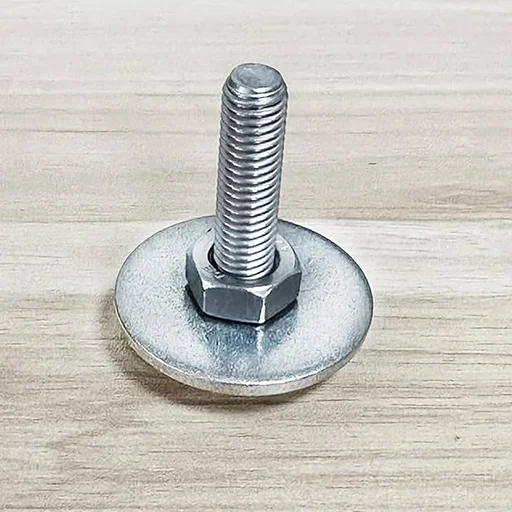

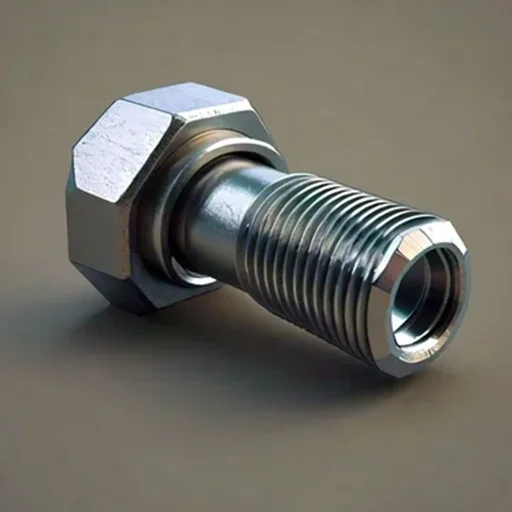

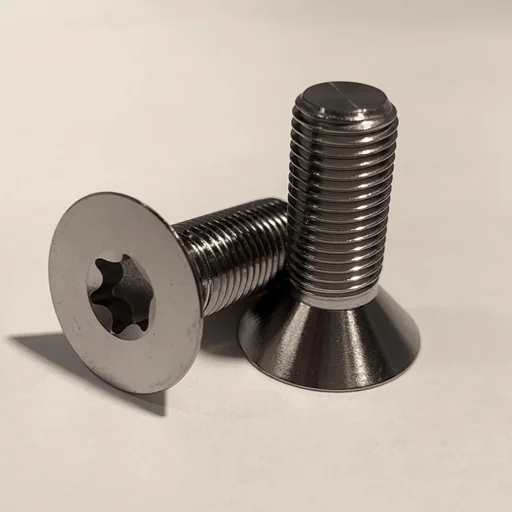

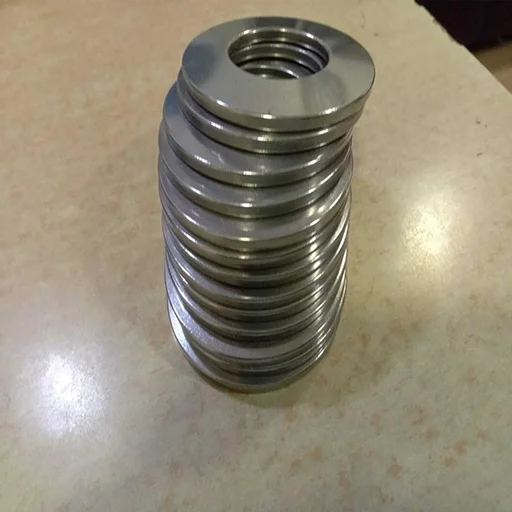

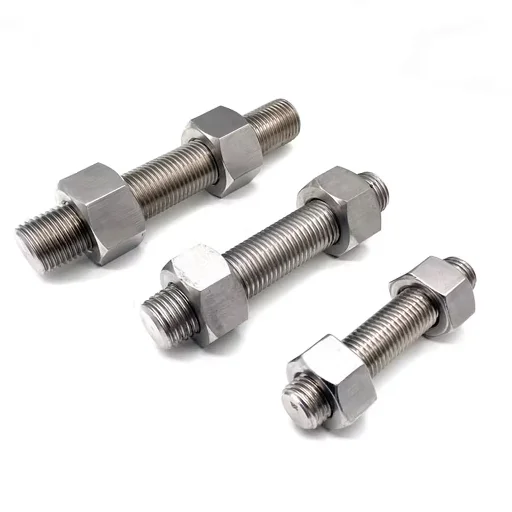

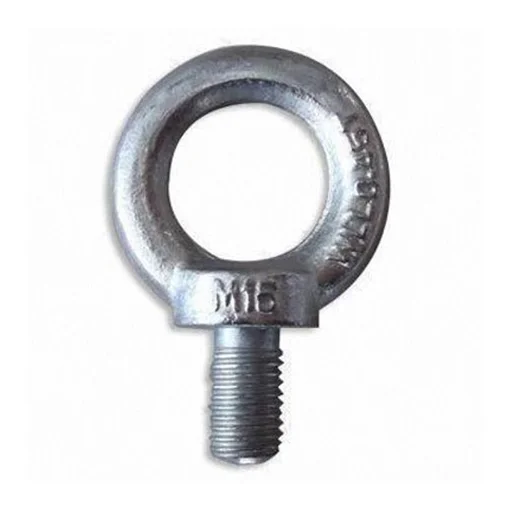

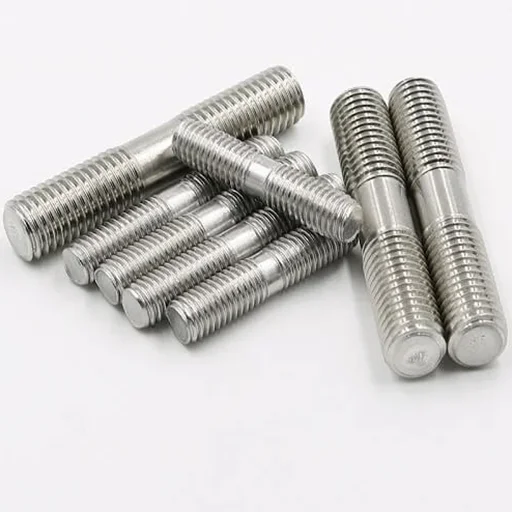

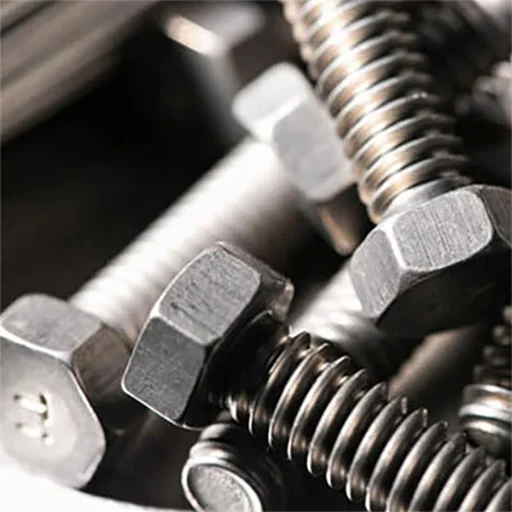

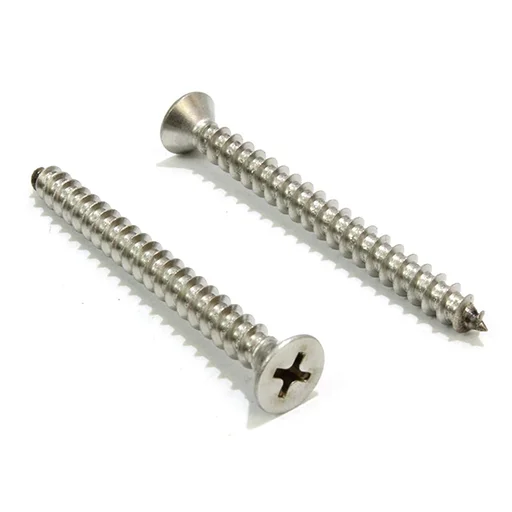

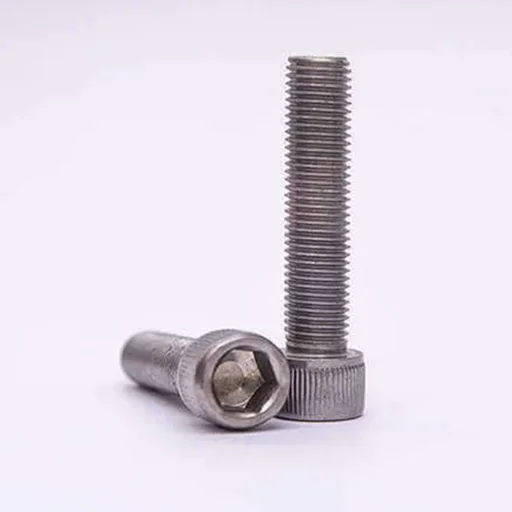

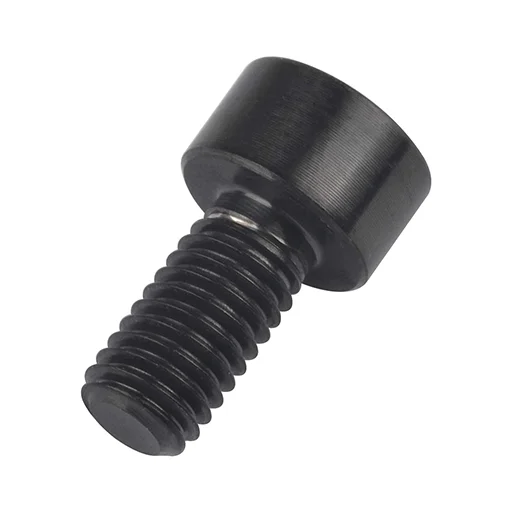

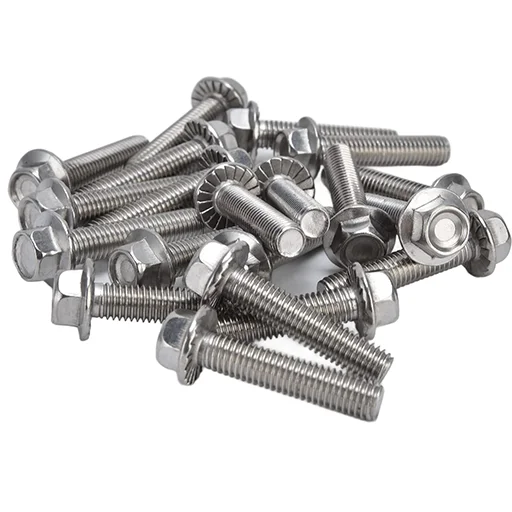

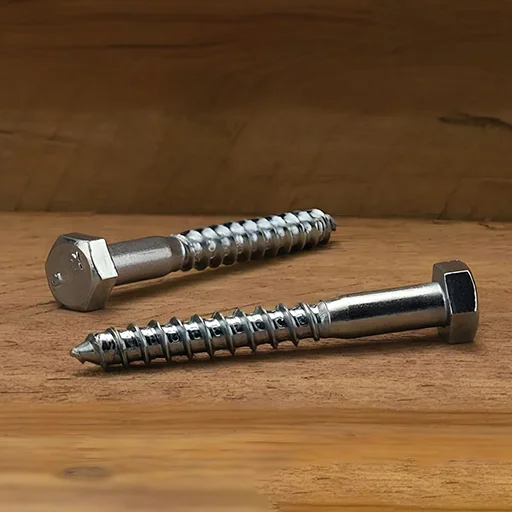

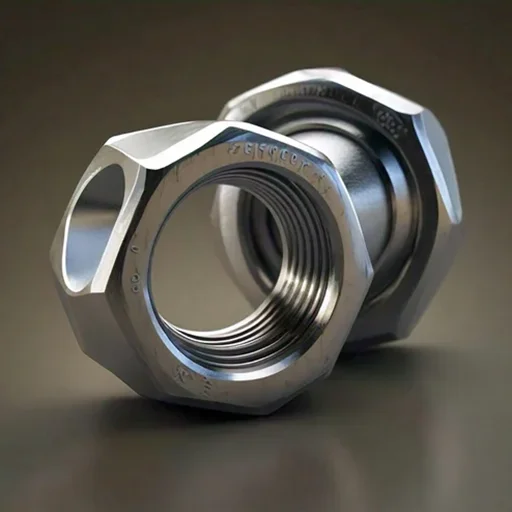

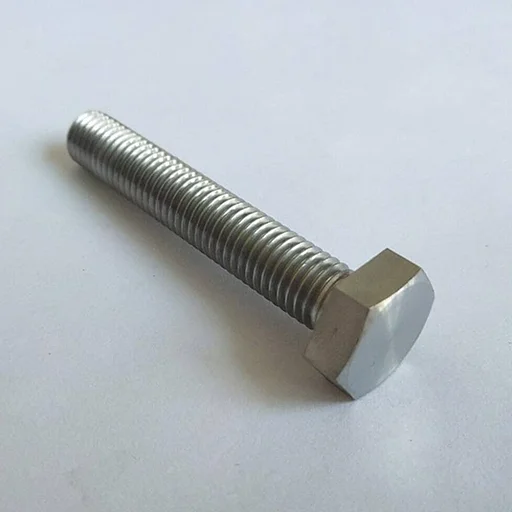

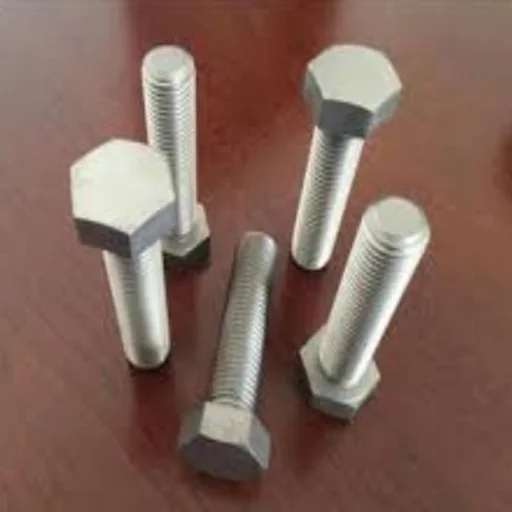

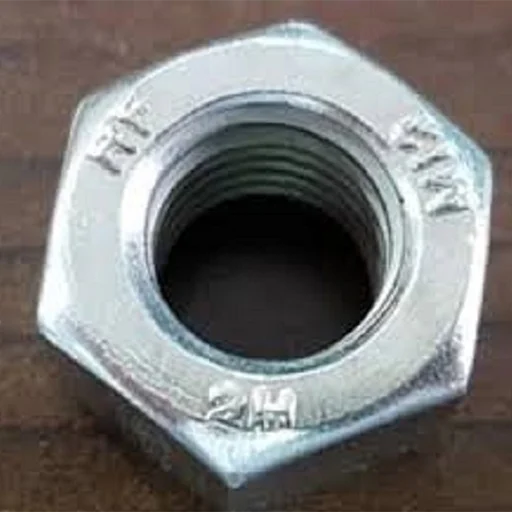

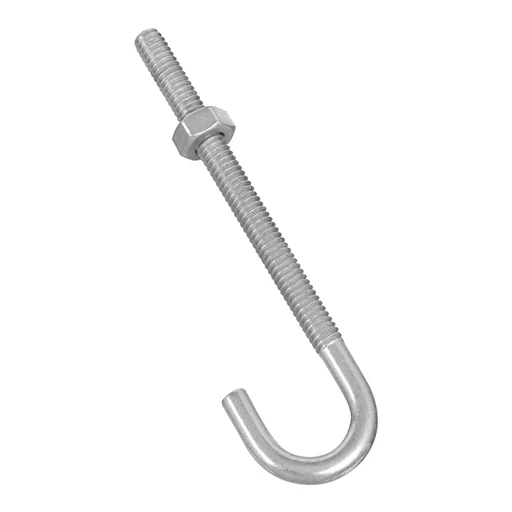

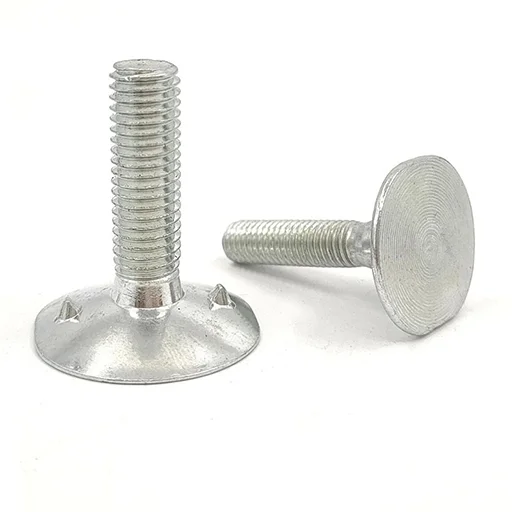

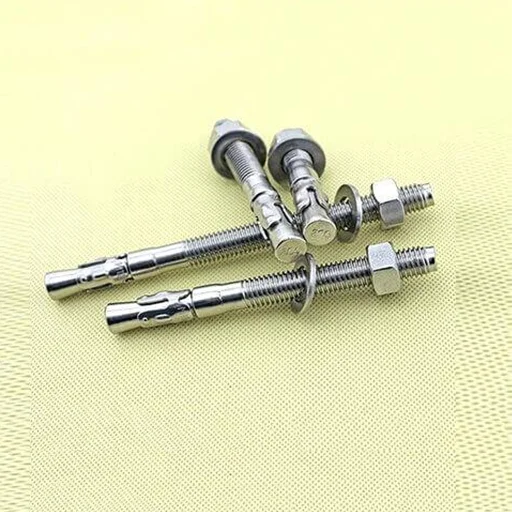

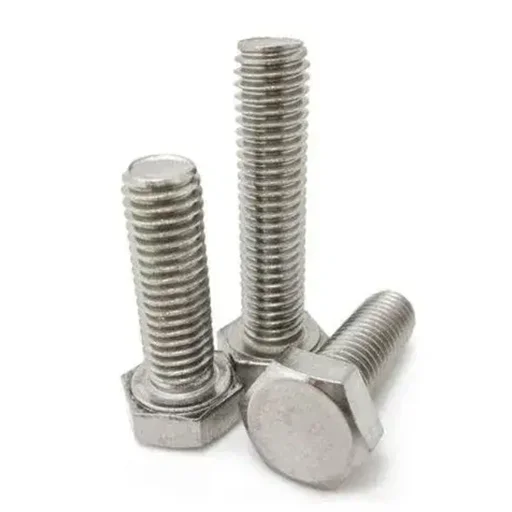

Types of Titanium Grade 2 Fasteners

Applications and Industrial Uses of Titanium Grade 2 Fasteners

Shipbuilding & Marine Equipment
Offshore Oil & Gas Platforms
Desalination Equipment
Heat Exchanger Assemblies
Chemical Storage Tanks
Water Treatment Systems
Architectural & Structural Applications
Aerospace Equipment

Frequently Asked Questions

What are Titanium Grade 2 Fasteners?

Titanium Grade 2 Fasteners are commercially pure titanium bolts, nuts, screws, and other threaded components used where low weight and corrosion resistance are required.

What are the advantages of Titanium Grade 2 Fasteners?

They offer excellent corrosion resistance, low density of about 4.51 g/cm³, good ductility, and a minimum tensile strength of 344 MPa.

Are Titanium Grade 2 Fasteners corrosion resistant?

Yes. They provide excellent resistance to seawater, chlorides, oxidizing environments, and many corrosive chemicals due to their protective oxide film.

What is ASTM B348 for Titanium Grade 2 Fasteners?

ASTM B348 is a specification covering titanium and titanium alloy bars and billets, including Grade 2 material that can be used for manufacturing fasteners.

Are Titanium Grade 2 fasteners magnetic?

No, Titanium Grade 2 is non-magnetic, which is why it is specified for MRI and electronics-adjacent hardware.

Can Titanium Grade 2 bolts be used in seawater?

Yes ,Grade 2 is one of the most seawater-resistant fastener materials available and shows no pitting or crevice corrosion in long-term marine exposure.

What is the difference between Titanium Grade 2 and Grade 5 fasteners?

Grade 2 is commercially pure with moderate strength (~50 ksi yield); Grade 5 (Ti-6Al-4V) is an alloy with roughly 2.5x the yield strength, used where higher clamp load is required.
