Titanium Grade 2 MIG Wire

Home  ›  Titanium Products  ›  Titanium Wire   ›  Titanium Grade 2 Wire  ›  Titanium Grade 2 MIG Wire

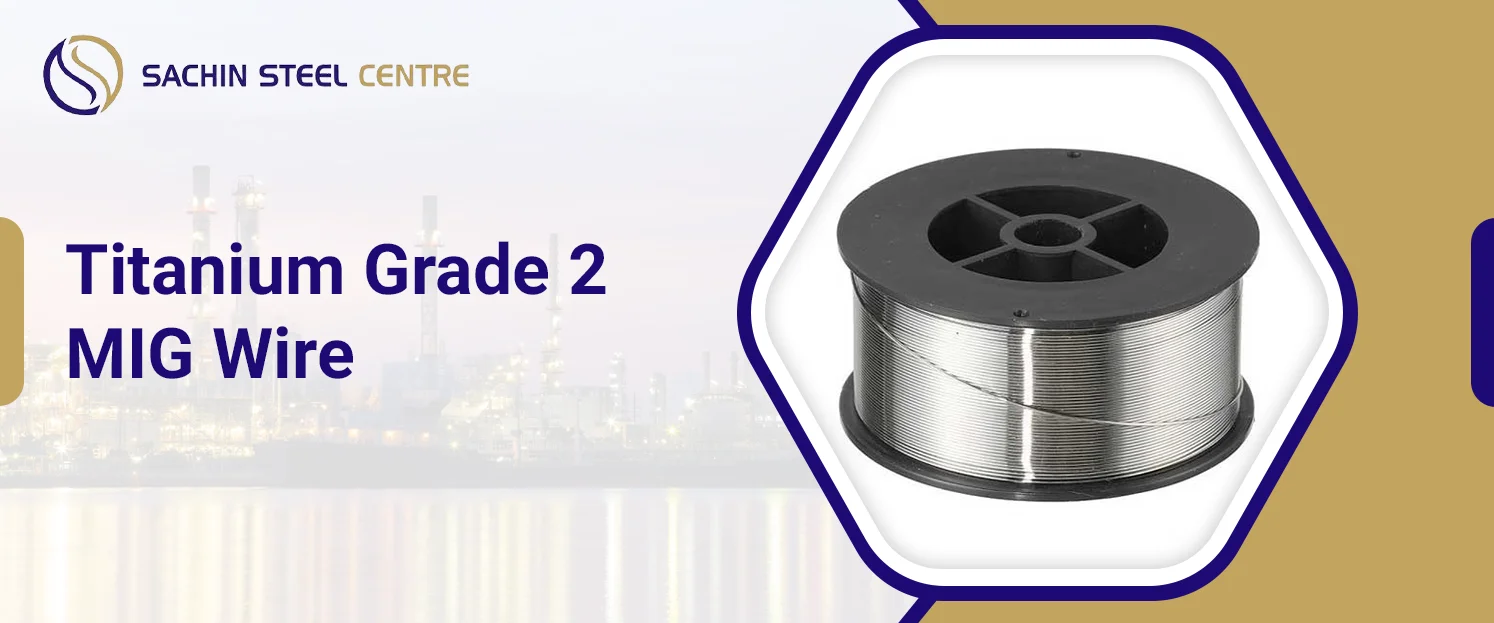

Titanium Grade 2 MIG Wire (AWS ERTi-2) Manufacturer, Supplier and Stockist

titanium grade 2 MIG wire
When GMAW welding titanium that is commercially pure, the welder requires wire that feeds smoothly and matches the parent metal while not adding unnecessary rigidity to the weld joint. Grade 2 MIG wire fulfills this requirement perfectly. Grade 2 Titanium MIG wire has the AWS A5.16 classification ERTi-2 as it is the designation for filler metals that are used for gas metal arc welding of commercially pure titanium. The wire is wound on spools that fit standard MIG welding equipment. This wire carries the UNS designation R50400, the same designation used for Titanium Grade 2 base metal.  The chemical composition of the wire is strictly defined according to the AWS A5.16 standards, which ensures that the weld filler remains ductile and not contaminated during the process, whether manual or automated. The wire can be procured from Sachin Steel Centre in Mumbai and all the spools are guaranteed to be tested and certified before shipment.
Table Of Content

Technical Data

Titanium Grade 2 MIG Wire Specification

Field

Detail

AWS Classification

AWS A5.16, ERTi-2

Werkstoff Number

3.7035

UNS Number

R50400

Form

MIG spools, vacuum sealed

Welding Process

GMAW (MIG)

Diameter Range

0.76 mm to 1.60 mm (0.030 inch to 0.062 inch), other sizes on request

Surface Finish

Clean, bright, oxide free for stable feeding

Grade 2 Titanium MIG Wire Chemical Composition

Element

Carbon (max)

Oxygen

Hydrogen (max)

Nitrogen (max)

Iron (max)

Titanium

Titanium Grade 2 MIG Wire

0.03%

0.08% to 0.16%

0.005%

0.03%

0.20%

Balance

Mechanical Properties of Titanium Grade 2 MIG Wire (As Welded)

Tensile Strength

Yield Strength

Elongation

344 MPa / 49,900 psi

275 MPa / 39,900 psi

20%

Titanium Grade 2 MIG Wire GMAW Welding Parameters

Diameter (mm)

Diameter (inch)

Voltage (V)

Amperage (A)

Shielding Gas

0.76

0.030

17

90 to 130

100% Argon

0.89

0.035

18

110 to 150

100% Argon

1.00

0.039

19

130 to 170

100% Argon

1.20

0.047

20

150 to 190

100% Argon

1.60

0.062

22

180 to 230

100% Argon

Parameters are typical starting points; actual settings vary with joint design, position, and equipment.

Request a Quote

Applications of Titanium Grade 2 MIG Wire

  •   Pressure Vessels and Piping. Titanium Grade 2 MIG wire produces clean, ductile welds suited to pressure vessel and piping fabrication where joint integrity matters as much as corrosion resistance.
  •   Heat Exchangers. Fabricators use Titanium Grade 2 MIG wire for tube to tubesheet joints and heat exchanger assembly where consistent, contamination free welds are essential.
  • Chemical Processing Equipment. Reactors, tanks and process piping welded with Titanium Grade 2 MIG wire retain the base metal’s resistance to acids and chlorides through the joint.
  • Marine Fabrication. Titanium Grade 2 MIG wire is used to weld seawater exposed components where the finished joint needs to match the corrosion resistance of the surrounding Titanium Grade 2 Wire base metal.
Application Industries

Frequently Asked Questions About Titanium Grade 2 MIG Wire

Titanium Grade 2 MIG wire is the AWS A5.16 ERTi-2 filler metal classification, held to tighter carbon, oxygen, hydrogen and nitrogen limits than general purpose Grade 2 wire, so the weld deposit stays ductile. Both share the same UNS number, R50400, and the same base titanium chemistry.

100% argon with a purity of 99.995% or higher is standard, along with a trailing shield and back purge on thin sections until the weld cools below 427 degrees Celsius.

Titanium Grade 2 MIG wire carries the UNS number R50400, the same designation used for Titanium Grade 2 base metal.

Standard MIG feed spool sizes are available, with custom spool weight and core size on request. See the Titanium Grade 2 Spool Wire page for full spool and reel dimension detail.

Yes. ERTi-2 is the AWS A5.16 classification for Titanium Grade 2 filler wire, and Titanium Grade 2 MIG wire refers to that same filler metal wound specifically for the GMAW process.

Request a Quote for Titanium Grade 2 MIG Wire

Sachin Steel Centre supplies certified Titanium Grade 2 MIG wire in every diameter listed on this page, with dispatch available across India and for export. For complete base metal specification, visit the full Titanium Grade 2 Wire page, or share your required specification here to receive a detailed quote along with mill test certificate confirmation.
