Titanium Grade 7 Manufacturer and Supplier in India

HOME → Titanium Alloy → Titanium Grade 7

Sachin Steel Product Banner_31 Aug_005

Titanium Grade 7 (UNS R52400 / W.Nr. 3.7235) is a commercially pure grade of Grade 7 titanium with an addition of palladium (approx. 0.12 – 0.25%). Its mechanical properties are similar to Titanium Grade 2 but the palladium addition allows for enhanced resistance to crevice corrosion and localized attack in hot, low pH, reducing acid environments. This is especially recommended for chemical processing equipment, heat exchangers, reactors and process systems that are exposed to aggressive media such as those found in Grade 7. It also offers very good formability and weldability characteristics enabling it to be formed into various product forms. Sachin Steel Centre is a trusted Titanium Grade 7 manufacturer and supplier in India and it supplies Grade 7 products which are used in high-stress, corrosion-resistant industrial applications.

Table Of Content

Technical Data

Specifications of Titanium Grade 7

Specification Parameter

Specification Details

Product Name

Titanium Grade 7 (Ti-0.15Pd)

UNS Designation

UNS R52400

Werkstoff Number

W.Nr. 3.7235

Nominal Composition

Ti-0.12 to 0.25Pd

Sheet & Plate Standard

ASTM B265 / ASME SB265

Round Bar & Rod Standard

ASTM B348 / ASME SB348

Seamless Pipe Standard

ASTM B861 / ASME SB861

Welded Pipe Standard

ASTM B862 / ASME SB862

Tube Standard

ASTM B338 / ASME SB338

Forgings & Flanges Standard

ASTM B381 / ASME SB381

Fasteners Standard

ASTM F467 / ASTM F468

Available Forms

Sheets, Plates, Round Bars, Pipes, Tubes, Fittings, Flanges, Fasteners

Material Condition

Annealed

Density

4.51 g/cm³

Melting Point

1660°C – 1670°C

Tensile Strength (min)

345 MPa (50 ksi)

Yield Strength 0.2% Offset (min)

275 MPa (40 ksi)

Elongation (min)

20%

Hardness (max)

150 HB

Chemical Compositions of Titanium Grade 7

C %

N %

Ti ≤ %

Fe %

O %

H %

Pd %

≤ 0.08

≤ 0.03

Rest

≤ 0.30

≤ 0.25

≤ 0.015

0.12-0.25

Titanium Grade 7 Mechanical Properties

Hardness HB 30 ≤ HB

0.2% Yield strength Rₚ ≥ N/mm²

Tensile strength Rₘ N/mm²

Elongation A₅ ≥ %

Modulus of elasticity kN/mm²

150

275

≥ 345

20

108

Physical Properties Titanium Grade 7

Density g/cm³

Specific heat capacity J/kg K

Thermal conductivity W/m K

Electrical resistivity Ω mm²/m

4.51

520

17

0.5

Types of Titanium Grade 7

TITANIUM CRADE 7 FITTINGS

TITANIUM GRADE 7 FITTINGS

TITANIUM GRADE 7 BAR

TITANIUM GRADE 7 BAR

TITANIUM GRADE 7 FASTENERS

TITANIUM GRADE 7 FASTENERS

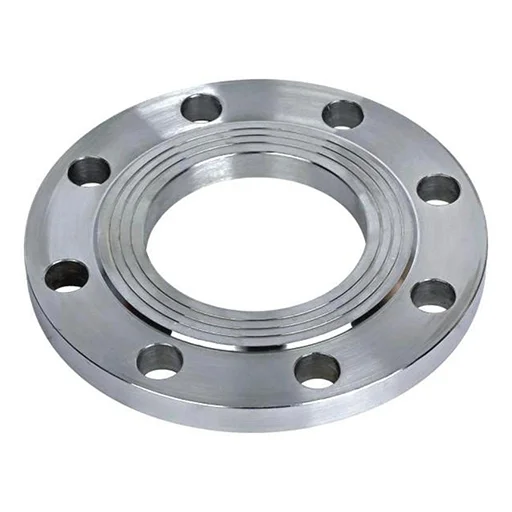

TITANIUM GRADE 7 FLANGES

TITANIUM GRADE 7 FLANGES

TITANIUM GRADE 7 FORGINGS

TITANIUM GRADE 7 FORGINGS

TITANIUM GRADE 7 PIPE

TITANIUM GRADE 7 PIPE

TITANIUM GRADE 7 PLATE

TITANIUM GRADE 7 PLATE

TITANIUM GRADE 7 ROD

TITANIUM GRADE 7 ROD

TITANIUM GRADE 7 SHEET

TITANIUM GRADE 7 SHEET

TITANIUM GRADE 7 TUBE

TITANIUM GRADE 7 TUBE

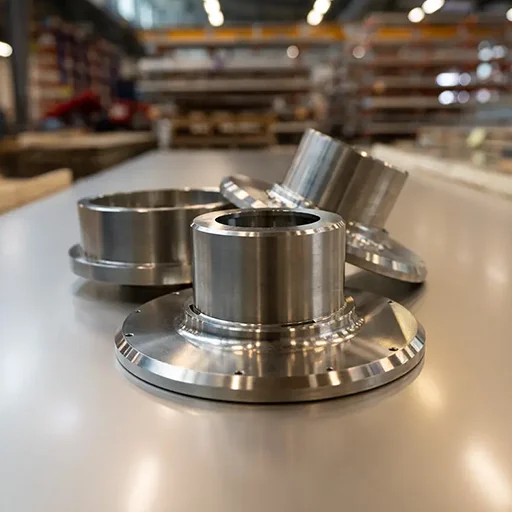

TITANIUM GRADE 7 WELDED PRODUCTS

TITANIUM GRADE 7 WELDED PRODUCTS

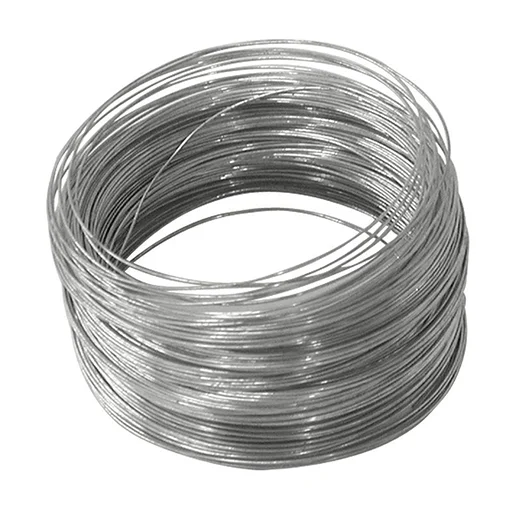

TITANIUM GRADE 7 WIRE

TITANIUM GRADE 7 WIRE

Request a Quote

Applicational and Industrial Uses of Titanium Grade 7

  • Chemical Processing Equipment
  • Heat Exchangers
  • Reactors
  • Process Piping Systems
  • Desalination Equipment
  • Chloride Processing Systems
  • Pollution Control Equipment
  • Chemical Storage Tanks
Application Industries

Frequently Asked Questions

Titanium Grade 7 is a commercially pure titanium grade with a small palladium addition of approximately 0.12–0.25%, providing enhanced corrosion resistance in aggressive environments.

The UNS number of Titanium Grade 7 is UNS R52400.

Titanium Grade 7 is primarily composed of titanium, with approximately 0.12–0.25% palladium added to improve corrosion resistance.

Yes, Titanium Grade 7 offers excellent corrosion and crevice corrosion resistance, particularly in reducing acids and hot chloride-containing environments.

Both have similar mechanical properties, but Grade 7 contains palladium, giving it significantly better resistance to crevice and localized corrosion than Grade 2.

Yes, Titanium Grade 7 has excellent weldability and can be welded using suitable procedures used for commercially pure titanium.
