Titanium Grade 5 Rod

Home  ›  Titanium Products  › Titanium Grade 5 Rods

Titanium Grade 5 Rod Manufacturer and Supplier in India

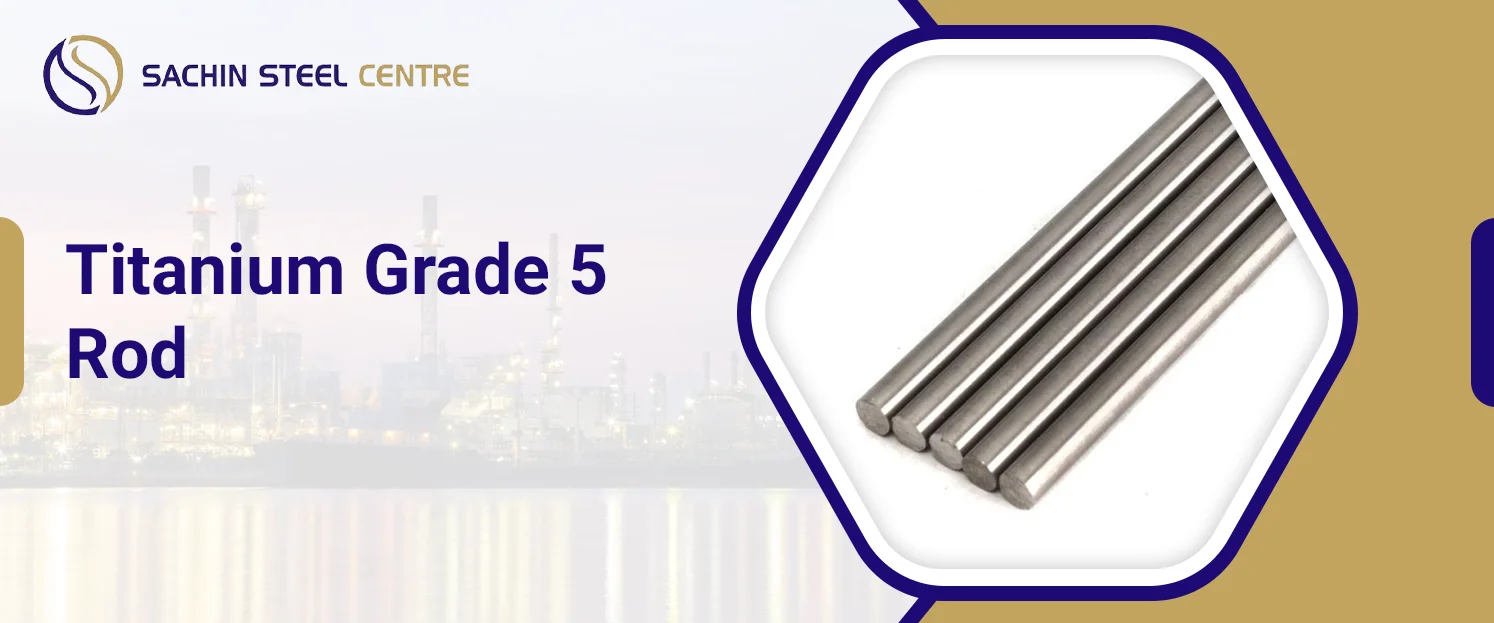

Titanium grade 5 rod
Titanium Grade 5 rod is manufactured from Ti 6Al 4V, an alpha-beta titanium alloy formulated for use in industries that demand lightweight, high-strength, corrosion-resistant, and dependable mechanical properties. The titanium alloy comprises about 6% aluminum and 4% vanadium which makes it much stronger than commercially pure titanium grades while retaining low density. Titanium Grade 5 rods are usually supplied as per ASTM B348 and ASME SB348 and are specified as per UNS R56400. The titanium rods are used in marine systems, aerospace parts, chemical processing industry, power generation components as well as medical devices. Sachin Steel Centre offers Titanium Grade 5 rods of different sizes, types, specifications, and manufacturing conditions both in India and abroad.
Table Of Content

Technical Data

Titanium Grade 5 Rod Specification

Specification

Details

Material

Titanium Grade 5

Alloy

Ti 6Al 4V

UNS Number

R56400

Werkstoff Number

3.7165

Standard

ASTM B348

ASME Standard

ASME SB348

Material Type

Alpha beta titanium alloy

Density

4.43 g/cm³

Melting Range

Approximately 1604 to 1660°C

Available Forms

Round, square, hex, rectangular and custom sections

Available Finish

Cold drawn, bright, polished, turned and machined finishes subject to size

Supply Condition

Annealed and other conditions according to specification

Length

Standard and cut lengths according to requirement

Certification

Mill Test Certificate available according to order requirement

Chemical Composition of Titanium Grade 5 Rod

Element

Grade 5 Requirement

Titanium

Balance

Aluminum

5.50 to 6.75 percent

Vanadium

3.50 to 4.50 percent

Iron

0.40 percent maximum

Oxygen

0.20 percent maximum

Carbon

0.08 percent maximum

Nitrogen

0.05 percent maximum

Hydrogen

0.015 percent maximum

Mechanical Properties of Grade 5 Titanium Rod

Property

Minimum Reference Value

Tensile Strength

895 MPa

Yield Strength

828 MPa

Elongation

10 percent

Density

4.43 g/cm³

Elastic Modulus

Approximately 114 GPa

Melting Range

Approximately 1604 to 1660°C

Titanium Grade 5 Rod Physical Properties

Property

Typical Value

Density

4.43 g/cm³

Elastic Modulus

Approximately 114 GPa

Thermal Conductivity

Approximately 6.7 W/m·K

Electrical Resistivity

Approximately 1.7 µΩ·m

Melting Range

Approximately 1604 to 1660°C

Crystal Structure

Alpha beta

Magnetic Behaviour

Non ferromagnetic

Equivalent Grades of Grade 5 Rod

Standard or Designation

Equivalent

Titanium Grade

Grade 5

Alloy

Ti 6Al 4V

UNS

R56400

Werkstoff

3.7165

ASTM Bar Standard

ASTM B348

ASME Bar Standard

ASME SB348

Common European Material Number

3.7165

Common Industry Description

Ti 6Al 4V

Titanium Grade 5 Rod Weight Chart

Rod Diameter

Approximate Weight per Metre

5 mm

0.087 kg

6 mm

0.125 kg

8 mm

0.223 kg

10 mm

0.348 kg

12 mm

0.501 kg

15 mm

0.783 kg

16 mm

0.891 kg

20 mm

1.392 kg

25 mm

2.174 kg

30 mm

3.131 kg

32 mm

3.563 kg

40 mm

5.567 kg

50 mm

8.699 kg

60 mm

12.525 kg

75 mm

19.569 kg

80 mm

22.266 kg

100 mm

34.790 kg
Request a Quote

Titanium Grade 5 Rod Applications

  • Aerospace: Used in aircraft structures, landing gear parts, bolt and equipment construction.
  • Medical: Utilized for orthopedic equipment, surgical machinery, dental mechanisms and high-tech medical gadgets.
  • Marine: Adequate for watertight connectors, marine spare parts and corrosion resistant products.
  • Chemical processing: Used in shafts, valves, fittings and similar devices that come into contact with aggressive agents.
  • Oil and gas: Employed for stout components requiring corrosion-proofing functions and reduced mass
  • Automotive: Used in performance machines, assemblies and units to connect and link parts together.
Application Industries

Frequently Asked Questions

Titanium Grade 5 Rod is Ti 6Al 4V alloy rod containing aluminum and vanadium for high strength, low weight and corrosion resistance.
Titanium Grade 5 Rod is identified by UNS R56400 under the ASTM Grade 5 designation.
ASTM B348 is the principal specification for titanium and titanium alloy bars and billets, including Grade 5.
Yes. Titanium Grade 5 is the common designation for Ti 6Al 4V alloy containing approximately 6 percent aluminum and 4 percent vanadium.
Titanium Grade 5 has a density of approximately 4.43 g/cm³, making it significantly lighter than conventional steel.
ASTM B348 Grade 5 has a minimum tensile strength of approximately 895 MPa in the applicable annealed condition.

Request a Quote for Titanium Grade 5 Rod

share your queries regarding diameter, length, quantity, finish, material condition, applicable standard and certification requirements to receive a detailed quotation for Titanium Grade 5 Rod.
