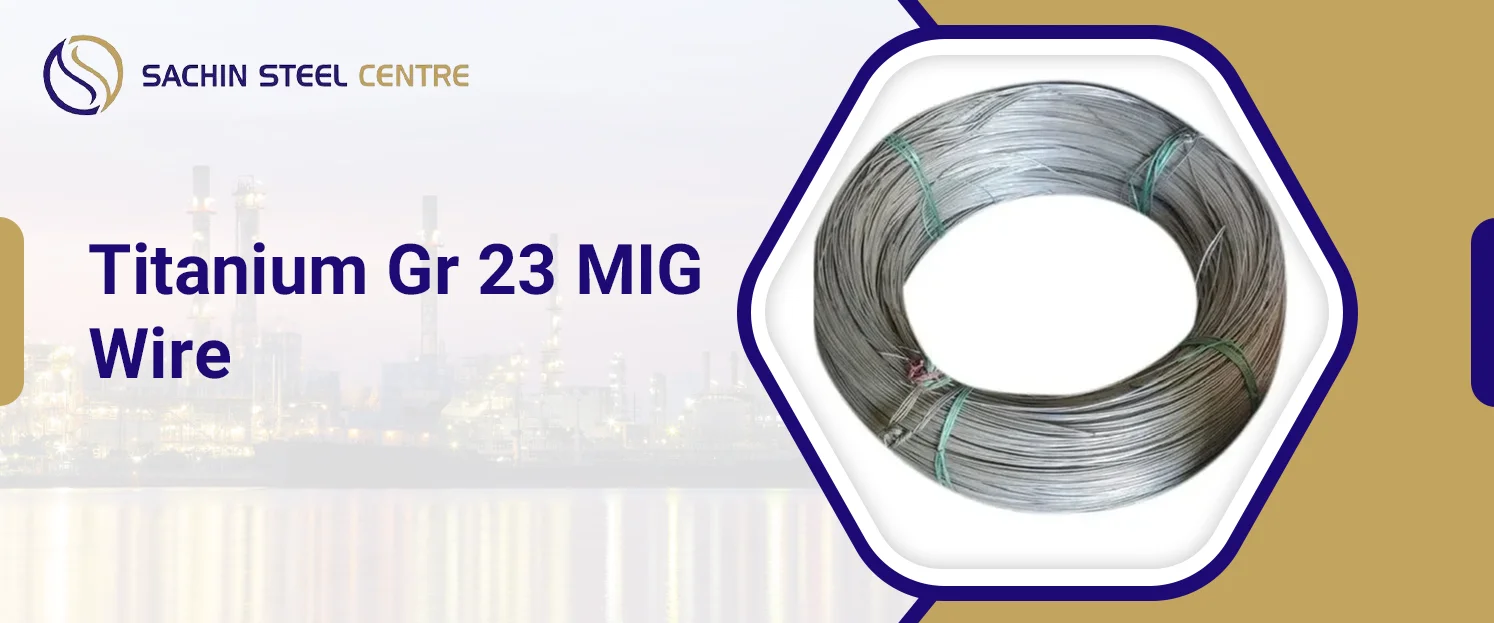

Titanium Gr 23 MIG Wire Manufacturer & Supplier in India

HOME → Our Products → Titanium Grade 23 wire → Titanium Gr 23 MIG Wire

A MIG welder does not feed titanium the way it feeds mild steel, and the wire has to be built for that from the start. Titanium Gr 23 MIG wire is Ti-6Al-4V ELI, drawn and spooled specifically for gas metal arc welding rather than cut into straight lengths, classified ERTi-23 under AWS A5.16 and made to ASTM B863, UNS R56407. It is the extra-low interstitial counterpart to standard ERTi-5 wire, so the weld itself ends up more ductile and more resistant to cracking, which is why it goes into aerospace fuel lines, medical device fabrication and cryogenic vessels where the weld cannot be the weak point. Sachin Steel Centre supplies it spooled and coiled, drawn to a size that feeds cleanly through an automated torch.

We are ISO 9001:2015 certified, and every coil ships with a mill test certificate to EN 10204 3.1, with 3.2 on request, from Mumbai to customers across India and overseas. For the parent wire range, see our titanium grade 23 wire page, and for the alloy itself, see our titanium gr 23 page.

Table Of Content

Specification of Titanium Grade 23 MIG Wire
Chemical Composition of Titanium Gr 23 MIG Wire
Titanium Gr 23 MIG Wire Mechanical Properties
Physical Properties of Gr 23 Titanium MIG Wire
Equivalent Standards and Designations of Titanium Gr 23 MIG Wire
Titanium Grade 23 MIG Wire Applications and Industries
Frequently Asked Questions

Technical Data

Specification of Titanium Grade 23 MIG Wire

Field	Detail
Alloy	Ti-6Al-4V ELI (Grade 23)
AWS Classification	ERTi-23 (AWS A5.16)
Standard	ASTM B863
UNS	R56407
Diameter Range	About 0.8 mm to 1.2 mm (typical MIG range; other sizes on request)
Form	Continuously spooled or coiled for automated wire feed welding
Surface Finish	Bright or pickled
Packaging	Plastic spool or coil, vacuum sealed
Certification	EN 10204 3.1 mill test certificate per lot; 3.2 on request

Chemical Composition of Titanium Gr 23 MIG Wire

Element	Content (max %, unless ranged)
Titanium (Ti)	Balance (about 88.09 – 91.00)
Aluminium (Al)	5.5 – 6.5
Vanadium (V)	3.5 – 4.5
Iron (Fe)	0.25 max
Oxygen (O)	0.13 max
Carbon (C)	0.08 max
Nitrogen (N)	0.03 max
Hydrogen (H)	0.0125 max
Other, each / total	0.10 / 0.40 max

Titanium Gr 23 MIG Wire Mechanical Properties

Property	Metric	Imperial
Tensile Strength, min	860 MPa	125,000 psi
Yield Strength, min	790 MPa	115,000 psi
Elongation at Break	10 – 15%	10 – 15%
Hardness, Rockwell C	About 35	About 35

Physical Properties of Gr 23 Titanium MIG Wire

Property	Value
Density	4.43 g/cm³ (0.160 lb/in³)
Melting Range	1604 – 1660°C (2919 – 3020°F)
Modulus of Elasticity	About 113.8 GPa (16,510 ksi)
Thermal Conductivity	About 6.7 W/m·K
Thermal Expansion (20 – 100°C)	About 8.6 µm/m·°C
Magnetic	Non magnetic

Equivalent Standards and Designations of Titanium Gr 23 MIG Wire

Reference	Value
AWS A5.16 Classification	ERTi-23
ASTM Specification	ASTM B863
UNS Number	R56407 (general wrought / welding wire use)
Werkstoff Nr.	3.7165

Titanium Grade 23 MIG Wire Applications and Industries

Aerospace: fuel and hydraulic line welding, where the weld has to match the base metal’s fracture toughness.
Medical Device Fabrication: Implant and instrument assemblies welded with ERTi-23 filler for biocompatibility and toughness.
Cryogenic Pressure Vessels: vessel and pipe welds that have to stay ductile at very low temperatures.
Marine and Subsea: component welding in saltwater service.

See our industry services pages for sector-specific supply.

Frequently Asked Questions

What is Titanium Gr 23 MIG wire?

Titanium Gr 23 MIG wire is Ti-6Al-4V ELI MIG welding wire, classified as ERTi-23 wire, supplied to ASTM B863 for welding Grade 23 titanium.

What is the difference between MIG and TIG titanium welding wire?

Titanium grade 23 MIG wire is continuously fed from a spool, while TIG wire uses straight lengths. Both can use Ti-6Al-4V ELI welding filler.

What is the difference between Grade 23 and Grade 5 MIG wire?

Titanium Gr 23 welding wire has lower interstitial limits than Grade 5. ERTi-23 wire provides improved weld ductility and fracture toughness for ELI applications.

What is the correct UNS number for Titanium Gr 23 MIG wire?

UNS R56407 identifies general Grade 23 wrought titanium, including applicable ASTM B863 MIG wire. UNS R56401 applies specifically to ASTM F136 implant material.

What diameters and spool or coil sizes are available?

Titanium Gr 23 MIG wire is commonly supplied in approximately 0.8–1.2 mm diameters on spools or coils. Confirm diameter and package requirements before ordering.

What shielding gas is needed to MIG weld Titanium Gr 23?

Ti-6Al-4V ELI MIG welding wire requires high-purity argon shielding, typically 99.99% or better, with adequate trailing and backing protection against contamination.

Can Titanium Gr 23 MIG wire be used to weld Grade 5 base metal?

Yes. ERTi-23 wire can weld Grade 5 and Grade 23 titanium. Confirm filler selection and parameters against the applicable welding procedure specification.

What is the price of Titanium Gr 23 MIG wire?

Titanium MIG wire manufacturer India pricing depends on diameter, spool or coil weight, quantity, specification, certification and market conditions. Request a project-specific quotation.
