Titanium Grade 5 Fasteners Manufacturer and Supplier in India

HOME → Titanium Products → Titanium Grade 5 Flanges
Titanium Grade 5 Fasteners Manufacturer and Supplier in India
Titanium Grade 5 (Ti-6Al-4V, UNS R56400) fasteners deliver roughly 2.5 times the yield strength of commercially pure titanium while retaining a strength-to-weight ratio far above steel, making them the standard choice for aerospace, high-performance automotive and marine fastening applications manufactured to ASTM F2281 and ASME B18.2.1.They are known as UNS R56400 and Werkstoff 3.7165 and have a minimum tensile strength of 950 MPa and yield strength of 880 MPa and a density of about 4.43 g/cm 3. They are strong and light which will help minimize assembly weight and maximize joint performance! The alloy is also coated with a stable titanium oxide film, which helps to prevent pit and crevice corrosion, as well as from chlorides and environments. Sachin Steel Centre is a prominent manufacturer and supplier of Titanium Grade 5 Bolts, Nuts, Screws, Studs and Threaded Fasteners in India with precision manufacturing ability to provide for highly demanding industrial applications.

Technical Data

Table Of Content

Specifications of Titanium Grade 5 Fasteners

Parameter

Technical Specification

Material Specification (Bolts, Screws, Studs)

ASTM F468 / ASME SF468 Grade 5

Material Specification (Nuts)

ASTM F467 / ASME SF467 Grade 5

Raw Material Bar Specification

ASTM B348 / ASME SB348 Grade 5, AMS 4928

UNS Designation

UNS R56400

Werkstoff / DIN Number

3.7165 (Industrial) / 3.7164 (Aerospace)

Verified Size Range (Metric)

M3 to M64

Verified Size Range (Imperial)

#4 to 2-1/2″

Thread Form Standards

UNC, UNF, UNEF, BSW, BSF, ISO Metric Coarse & Fine

Thread Fit Classes

Class 2A / 2B (Imperial), Class 6g / 6H (Metric)

Surface Finish Options

As-Machined, Passivated, Type II Anodized, PTFE / Xylan Dry-Film

Quality & Inspection

EN 10204 3.1 / 3.2 MTC, NACE MR0175 / MR0103, PMI, TPI (SGS, TUV, BV)

Chemical Compositions of Titanium Grade 5 Fasteners

Grade

N (max)

C (max)

H (max)

Fe (max)

O (max)

Al

V

Titanium Gr. 5

0.05%

0.10%

0.01%

0.40%

0.20%

5.50 – 6.75%

3.50 – 4.50%

Titanium Grade 5 Fasteners Mechanical Properties

Element

Density

Melting Point

Tensile Strength

Yield Strength (0.2% Offset)

Elongation

Titanium Gr. 5

4.43 g/cm³

1632°C (2970°F)

138,000 Psi / 950 MPa

128,000 Psi / 880 MPa

14%

Equivalent Grades of Titanium Grade 5 Fasteners

Standard

Werkstoff Nr.

UNS

Titanium Gr. 5

3.7165

R56400

Dimensions Chart of Titanium Grade 5 Fasteners

Nominal Size (Fractional)

Nominal Size (Decimal)

Width Across Flats (Basic)

Width Across Flats (Max)

Width Across Flats (Min)

Width Across Corners (Min)

Width Across Corners (Max)

Thickness (Basic)

Thickness (Max)

Thickness (Min)

1/4″

0.250

1/2″

0.500

0.488

0.556

0.577

15/64″

0.250

0.218

5/16″

0.3125

9/16″

0.562

0.546

0.622

0.650

19/64″

0.314

0.281

3/8″

0.375

11/16″

0.688

0.669

0.763

0.794

23/64″

0.377

0.341

7/16″

0.4375

3/4″

0.750

0.728

0.830

0.866

27/64″

0.441

0.403

1/2″

0.500

7/8″

0.875

0.850

0.969

1.010

31/64″

0.504

0.464

9/16″

0.5625

15/16″

0.938

0.909

1.037

1.083

35/64″

0.568

0.526

5/8″

0.625

1-1/16″

1.062

1.031

1.175

1.227

39/64″

0.631

0.587

3/4″

0.750

1-1/4″

1.250

1.212

1.382

1.443

47/64″

0.758

0.714

7/8″

0.875

1-7/16″

1.438

1.394

1.589

1.660

55/64″

0.885

0.833

1″

1.000

1-5/8″

1.575

1.325 (1.531)

1.796

1.876

63/64″

1.012

0.956

1-1/8″

1.125

1-13/16″

1.812

1.756

2.002

2.093

1-7/64″

1.139

1.079

1-1/4″

1.250

2″

1.938

1.875 (1.875)

2.209

2.309

1-7/32″

1.251

1.187

1-3/8″

1.375

2-3/16″

2.188

2.119

2.416

2.526

1-11/32″

1.378

1.296 (1.310)

1-1/2″

1.500

2-3/8″

2.375

2.300 (2.300)

2.622

2.742

1-15/32″

1.505

1.433

1-5/8″

1.625

2-9/16″

2.562

2.481

2.828

2.959

1-19/32″

1.632

1.556

1-3/4″

1.750

2-3/4″

2.750

2.662

3.035

3.175

1-23/32″

1.759

1.679

2″

2.000

3-1/8″

3.125

3.025

3.449

3.608

1-31/32″

2.013

1.925

2-1/4″

2.250

3-1/2″

3.500

3.388

3.862

4.041

2-13/64″

2.251

2.155

2-1/2″

2.500

3-7/8″

3.875

3.753

4.275

4.474

2-29/64″

2.505

2.401

2-3/4″

2.750

4-1/4″

4.250

4.112

4.688

4.907

2-45/64″

2.759

2.647

3″

3.000

4-5/8″

4.625

4.475

5.102

5.340

2-61/64″

3.013

2.893

3-1/4″

3.250

5″

5.000

4.838

5.515

5.774

3-3/16″

3.252

3.124

3-1/2″

3.500

5-3/8″

5.375

5.250

5.928

6.207

3-7/16″

3.506

3.370

3-3/4″

3.750

5-3/4″

5.750

5.562

6.341

6.640

3-11/16″

3.670

3.616

4″

4.000

6-1/8″

6.125

5.925

6.755

7.073

3-15/16″

4.014

3.862

Titanium Grade 5 Fasteners Weight Chart

Size (Nominal)

Finished Hex

Heavy Square

Square

Heavy Hex

Heavy Hex Jam

Finished Jam

1/2″

3.75

7.87

5.78

6.54

4.00

2.62

5/8″

7.33

14.30

10.80

11.90

6.96

4.93

3/4″

11.90

23.50

15.40

19.30

11.00

7.77

7/8″

19.00

36.20

24.50

29.70

16.70

12.00

1″

28.30

51.50

36.30

42.50

23.50

17.60

1-1/8″

40.30

72.40

52.50

59.20

32.40

24.70

1-1/4″

54.30

95.50

70.60

78.60

45.80

36.10

1-3/8″

73.00

125.00

94.50

102.00

59.30

47.90

1-1/2″

94.30

161.00

122.00

131.00

74.80

60.90

1-5/8″

—

—

—

162.00

91.60

—

1-3/4″

151.00

—

—

204.00

114.00

100.00

1-7/8″

—

—

—

241.00

134.00

—

2″

224.00

—

—

299.00

165.00

140.00

2-1/4″

—

—

—

419.00

227.00

—

2-1/2″

—

—

—

564.00

332.00

—

2-3/4″

—

—

—

738.00

429.00

—

3″

—

—

—

950.00

545.00

—

3-1/4″

—

—

—

1194.00

651.00

—

3-1/2″

—

—

—

1526.00

851.00

—

3-3/4″

—

—

—

1812.00

1005.00

—

4″

—

—

—

2180.00

1200.00

—

Weights shown in grams per piece.

Temperature Charts of Titanium Grade 5 Fasteners

Temperature (°F)

Yield Strength (ksi / MPa)

Ultimate Tensile Strength (ksi / MPa)

Elongation (%)

Room Temp (≈70°F)

128 ksi (880 MPa)

138 ksi (950 MPa)

14%

300°F (149°C)

105 ksi (724 MPa)

121 ksi (834 MPa)

16%

500°F (260°C)

93 ksi (641 MPa)

110 ksi (758 MPa)

17%

700°F (371°C)

82 ksi (565 MPa)

100 ksi (690 MPa)

18%
Request a Quote

Different Types of Titanium Gr 5 Fasteners

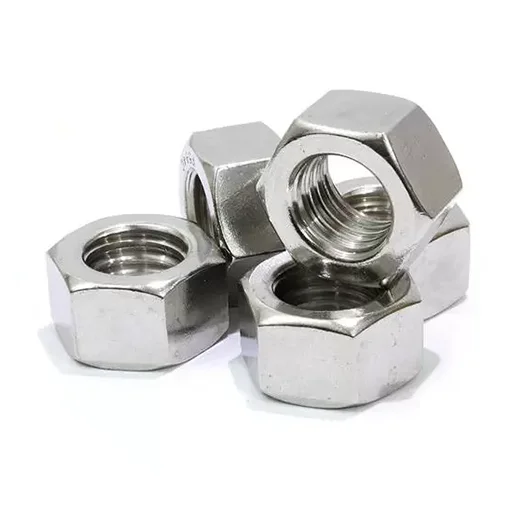

Titanium Gr 5 Nuts

Titanium Gr 5 Nuts

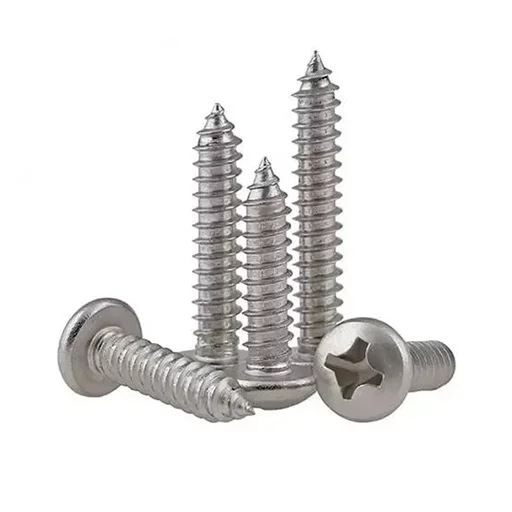

Titanium Gr 5 Screws

Titanium Gr 5 Screws

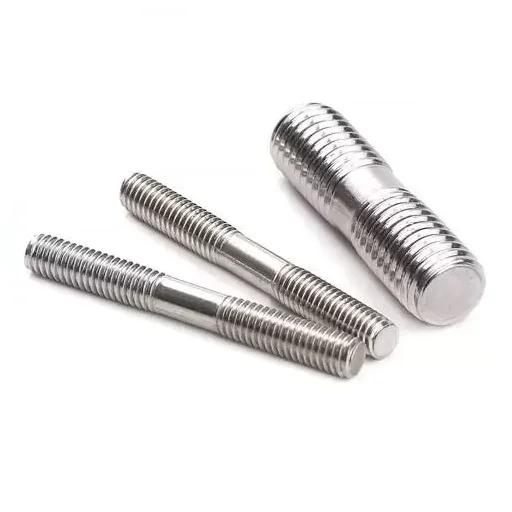

Titanium Gr 5 Stud Bolts

Titanium Gr 5 Stud Bolts

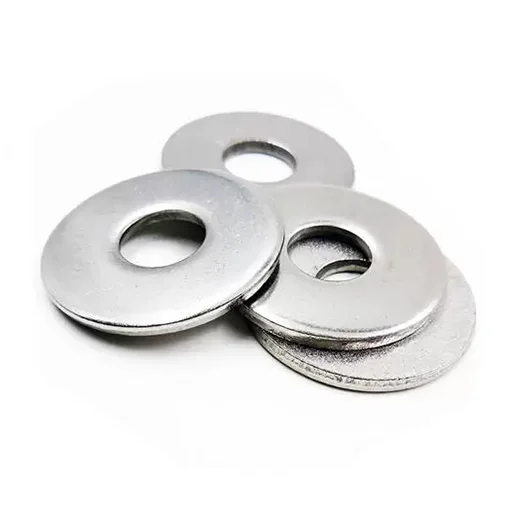

Titanium Gr 5 Washers

Titanium Gr 5 Washers

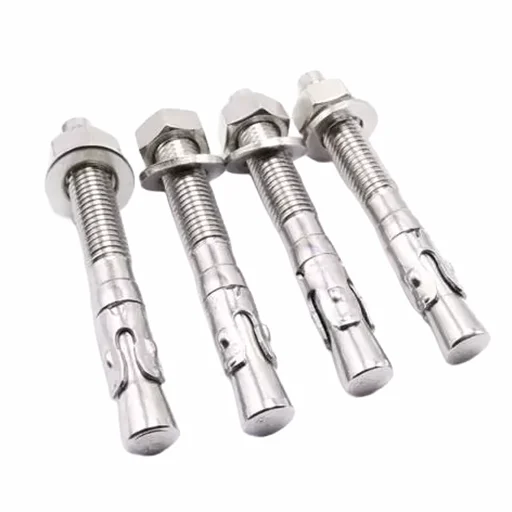

Titanium Gr 5 Anchor Bolts

Titanium Gr 5 Anchor Bolts

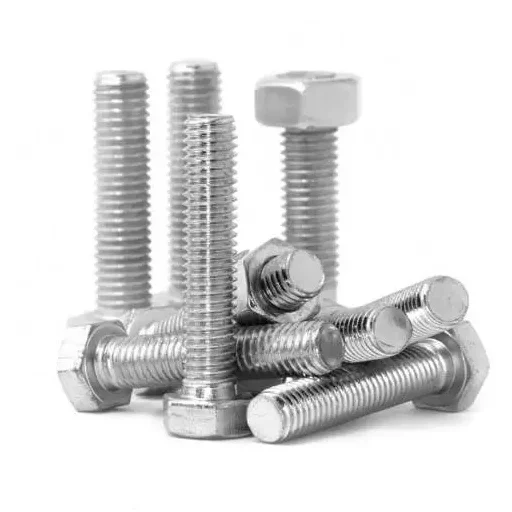

Titanium Gr 5 Bolts

Titanium Gr 5 Bolts

Applications and Industrial Uses of Titanium Grade 5 Fasteners

  • Aerospace & Aircraft Structures
  • Automotive & Motorsport Equipment
  • Marine & Offshore Systems
  • Oil & Gas Equipment
  • Chemical Processing Equipment
  • Medical & Surgical Equipment
  • Power Generation Equipment
  • Sports & High-Performance Equipment
Application Industries

Frequently Asked Questions

Titanium Grade 5 Fasteners are Ti-6Al-4V titanium alloy bolts, nuts, screws, studs, and other fasteners known for high strength, low weight, and corrosion resistance.
Yes. They offer excellent corrosion resistance in seawater, chlorides, oxidizing environments, and many industrial conditions due to their protective titanium oxide film.
Grade 5 offers roughly 2.5x the yield strength of Grade 2 (828 MPa vs ~345 MPa), so it is specified wherever higher clamp load or fatigue resistance is required, such as aerospace assemblies.
Yes, up to approximately 400°C, after which strength begins to fall off — for higher-temperature service other titanium or nickel alloys are typically specified.
AMS 4928 and AMS 4967 are the common aerospace bar/forging specifications for Ti-6Al-4V used in fastener manufacture.

Typically 6 mm to 200 mm diameter in mill, turned, or polished finish, supplied as bar stock or custom-cut lengths.

Titanium Grade 5 is primarily titanium alloyed with approximately 6% aluminum and 4% vanadium, with small amounts of other elements.
Yes, they can be used at elevated temperatures, but their allowable temperature depends on the application, load, exposure time, and design requirements.
Yes. Titanium Grade 5 is a heat-treatable alloy, and appropriate heat treatment can increase its strength and mechanical performance.
Pan-India Supply Network & Export Worldwide

Pan-India

Supply Network

Map of India supply network
45+ Cities Served

Export

Worldwide

Export worldwide shipping routes

Our Global Export Regions

Sachin-Steel_Product-CTA

Titanium

Materials

Our Products

    Enquire Now
