Manufacturer & Supplier of TZM Molybdenum Alloy

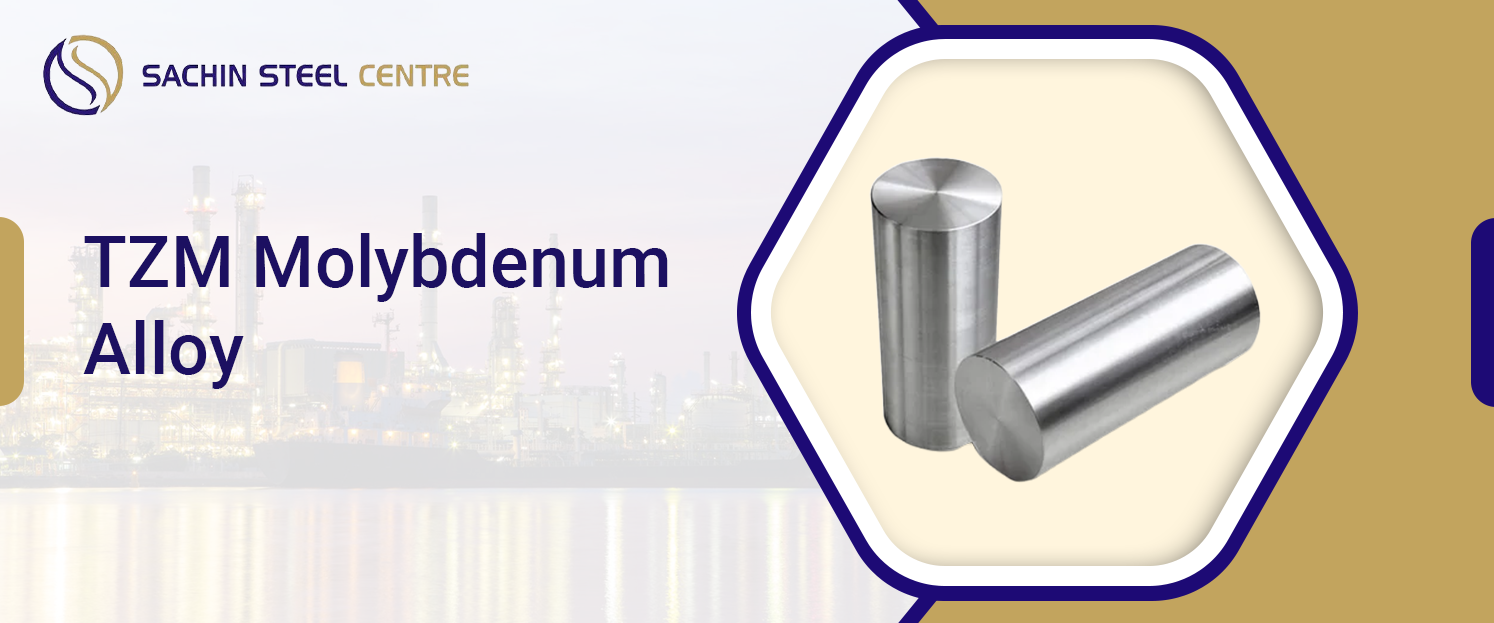

TZM Molybdenum Alloy

Sachin Steel Centre is a renowned manufacturer & supplier of high-performance TZM alloy (Titanium-Zirconium-Molybdenum), specializing in producing a wide range of TZM molybdenum products. Our comprehensive product line includes TZM alloy plates, rods, sheets, bars & wires, all tailored to meet the most demanding industrial applications. As a trusted TZM molybdenum alloy supplier, we provide custom machining and finishing services to deliver precise parts fabricated to your exact specifications. Our TZM molybdenum alloy is produced using advanced manufacturing techniques such as Powder Metallurgy (P/M) and Arc Cast technologies, ensuring superior quality and consistency in every product. With a low-oxygen content of less than 50 ppm, our TZM alloy offers exceptional creep resistance and high-temperature strength, making it ideal for high-temperature manufacturing.

Contact us today to learn more about our TZM molybdenum alloy products and how we can support your business needs.

Request Quote
inverted-commas

TZM alloy, Titanium Zirconium Molybdenum alloy, TZM molybdenum alloy, TZM alloy material, TZM composition, TZM alloy properties, TZM alloy products, High-temperature TZM alloy, TZM molybdenum bar, TZM alloy sheet, TZM alloy rod.

Table Of Content

About TZM (Titanium-Zirconium-Molybdenum) alloy

TZM (Titanium-Zirconium-Molybdenum) alloy is a high-performance material which is composed of molybdenum (Mo), with added titanium (Ti) and zirconium (Zr). TZM alloy offers superior mechanical properties such as exceptional strength, hardness & creep resistance especially at temperatures exceeding 1,000°C. This combination enhances the alloy’s resistance to deformation under stress.

TZM molybdenum alloy is renowned for its high strength-to-weight ratio and thermal stability. Its melting point reaches 2,623°C (4,753°F), significantly higher than that of pure molybdenum. At elevated temperatures, TZM outperforms pure molybdenum in terms of strength and creep resistance, especially in applications above 1,300°C. It is twice as strong as pure molybdenum at these temperatures, offering excellent durability in environments that demand high-performance materials. Its excellent thermal conductivity, low vapor pressure & machinability make it more reliable.

Available Stock of TZM Alloy Products

At Sachin Steel Centre, we supply a complete range of high-quality titanium products designed to meet the needs of diverse industries. Our titanium material  are available in multiple forms, ensuring durability, corrosion resistance, and excellent performance in demanding environments.

wire

TZM Alloy Wire

SS Shim Plates

TZM Alloy Sheet/Plates

Polished Bar

TZM Alloy Round Bar/Rod

fitting

Titanium Fittings

Fasteners

Titanium Fasteners

Circle

Titanium Circle

Product Standard Size Process Surface
TZM Alloy Wire ASTM B387, TYPE 364 0.5-4.0mm diameter x L – Black oxide, chemically cleaned
TZM Alloy Rod ASTM B387, TYPE 364 4.0-100mm diameter x <2000mm L Drawing, swaging Black oxide, chemically cleaned, Grinding
TZM Alloy Plate ASTM B386, TYPE 364 4.75- 50mm thickness x W x L Forging, rolling Chemically cleaned, Grinding
TZM Alloy Tube ASTM B387, TYPE 364 0.8″-20″ OD, 106″ max length per piece Sintering, drilling Black oxide, chemically cleaned, Grinding
Request Quote on TZM Molybdenum Alloy
inverted-commas

TZM titanium molybdenum alloy, Custom TZM alloy fabrication, TZM molybdenum high-strength material, Titanium zirconium molybdenum alloy supplier, TZM molybdenum alloy manufacturer, TZM alloy for high-temperature applications.

TZM Molybdenum Alloy Specifications

Form Size (mm) Process Surface
Wire (straight or rolled) Dia.: 0.5-4.0 Length: Customized – Black oxide; Chemically cleaned
Rod Dia.: 4.0-100 Length: <2000 Drawing; swaging Black oxide; Chemically cleaned; Grinding
Plate Thickness: 4.75-50 Width: Customized Length: Customized Forging; rolling Chemically cleaned; Grinding
Tube O.D.: 0.8″-20″ Length: Customized Sintering; drilling Fine Turning; Grinding

Chemical Composition of TZM Alloy

Others O Al Fe Mg Ni Si N Mo
Content (wt, %) ≤0.03 ≤0.01 ≤0.002 ≤0.002 ≤0.002 ≤0.002 ≤0.002 Bal.

TZM Material Molybdenum Alloy Physical Properties

Density lb/in3 0.37
  g/cm3 10.22
Melting Point °F 4753
  °C 2623
Electrical Resistivity Microhm-cm 6.85
Thermal Conductivity @20°C Cal/cm2/cm°C/sec 0.48
Specific Heat Cal/gm/°C 0.073
Recrystallization Temp °C 1400
Coefficient of Linear Thermal Expansion Micro-in/°F x 10-6 2.50
  Micro-in/°C x 10-6 5.20

Mechanical Properties of TZM Alloy- Plates & Sheets

Form Sheet Thickness
in. (mm)		 Tensile Strength
min, ksi (MPa)		 Yield Strength
0.2 % Offset, min.
ksi (MPa)		 Elongation
2″ (50 mm), min. %
Plate
  0.187″ to 0.500″
(4.750 to 12.700)		 120
(830)		 100
(690)		 10
  0.500″ to 1.000″
(12.700 to 25.400)		 110
(760)		 95
(660)		 10
Sheet
  0.025″ to 0.060″
(0.635 to 1.524)		 120
(830)		 100
(690)		 7
  0.060″ to 0.090″
(1.524 to 2.286)		 120
(830)		 100
(690)		 9
  0.090″ to 0.187″
(2.286 to 4.750)		 120
(830)		 100
(690)		 10
Source: ASTM B386 Type 364 (Plate, Sheet), Table 3 Stress Relief; When tested between 65° and 85 °F (18° and 29 °C)

TZM Molybdenum Alloy Mechanical Properties - Bars & Rods

Diameter, in. (mm) Tensile Strength,
min. ksi (MPa)		 Yield Strength,
0.2 % Offset, min.
ksi (MPa)		 Elongation in 1″
(50 mm) %		 Hardness (DPH),
-10 kg, Vickers-10 kg
0.188″ to 0.875″
(4.76 to 22.2)		 115
(790)		 100
(690)		 18 260 – 320
0.875″ to 1.125″
(22.2 to 28.6)		 110
(760)		 95
(655)		 15 250 – 310
1.125″ to 1.875″
(28.6 to 47.6)		 100
(690)		 85
(585)		 10 245 – 300
Source: ASTM B387 Type 364 (Bar, Rod), Table 3 Stress Relief

TZM Alloy Thermal And Electrical Properties

Properties The Coefficient of Thermal Expansion
(K-1) (20-100 ℃)		 Thermal Conductivity
(W/m·K)		 Max operating temperature in air
(℃)		 Resistivity
(Ω·m)
Value 5.3×10-6 126 400 (5.3-5.5)×10-8

Size Capabilities for TZM Alloy Flat Sheets and Plates

Dimension Range
Thickness Range 0.004” (0.10 mm) – 0.472” (12 mm)
Width Max Range 6.3” (160 mm) – 17.7” (450 mm)
Length Max Range 23.5” (600 mm) – 59” (1500 mm)

Size Ranges for TZM Alloy Bars & Rods

Property Value
Melting Point Range 1670 °C | 3038 °F | 1943 K
Boiling Point Range 3287 °C | 5949 °F | 3560 K
Density 4.506 g/cm3

Application of TZM Molybdenum Alloy

  • Aerospace and military
  • Heat treating and furnaces
  • Heat Exchangers
  • Resistance heating elements
Application Industries

Frequently Asked Questions About TZM Alloy

TZM Alloy (Titanium-Zirconium-Molybdenum) has higher strength, creep resistance, and a higher recrystallization temperature than pure molybdenum, especially at high temperatures over 1300°C. TZM also exhibits better oxidation resistance due to the addition of titanium and zirconium.

TZM Alloy is designed for high-temperature applications, with a working temperature range of 700°C to 1400°C, depending on the specific application and environmental conditions.

TZM Alloy is known for its high strength at elevated temperatures, excellent creep resistance, oxidation resistance, and high hardness. It also has good thermal conductivity and is machinable.

Titanium increases the strength and oxidation resistance of TZM, while zirconium enhances the alloy’s creep resistance and stabilizes the microstructure at high temperatures, improving overall performance.

Yes, TZM Alloy can be customized through various manufacturing processes, including powder metallurgy and arc-casting, to meet specific size, shape, and performance requirements for demanding applications like aerospace, rocket nozzles, and furnace components.
